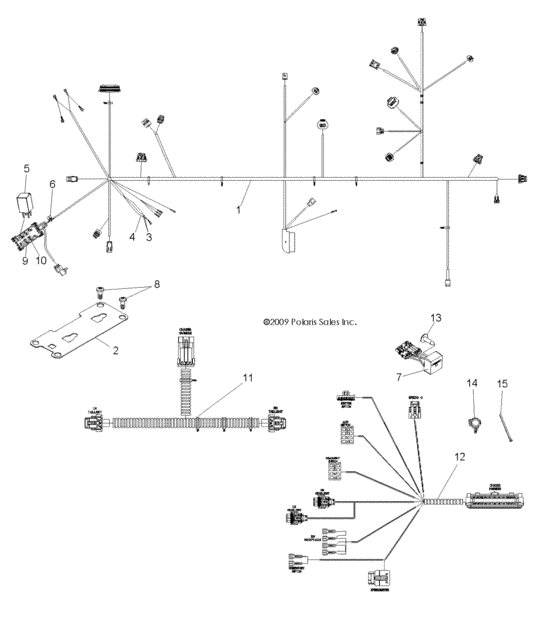

Electrical, wire harnesses (R09HH50AG/AR) Diagram Polaris RANGER 500 4X4 EFI
- Model code
- R09HH50AG/AR
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2411240 Harness-chassis,4x4,500Built 3/08/09 and Before;Incl. 3-6,9,10, All Kits, Decal; |
2411240 |
US $1,000.53 |
||
|
1
|
1
2876315 Kit-harness,eng map sensor tef |
2876315 |
US $167 |
||
|
1
|
1
2875900 Kit-harness,engine air temp |
2875900 |
US $162.26 |
||
|
1
|
1
2875901 Kit-harness,engine injector |
2875901 |
US $165.43 |
||
|
1
|
1
2203800
Kit-harness,tps,atv/ranger sng
|
2203800 |
— | ||
| replacement | |||||
|
1
|
1
2878498 Kit-harness,tps |
2878498 |
US $102.43 |
||
|
1
|
1
2411323 Harness-chassis,4x4,500Built 3/09/09 and After;Incl. 3-6,9,10, All Kits, Decal; |
2411323 |
US $672.11 |
||
|
1
|
1
7175328
Decal, fuse/relay block
|
7175328 |
— | ||
|
2
|
2
5251956 Plate-fuse,mnt,yBuilt 3/31/09 and Before; |
5251956 |
US $24.43 |
||
|
2
|
2
5253675 Plate-fuse,mnt,yBuilt 4/01/09 and After; |
5253675 |
US $3.26 |
||
|
3
|
3
2202607 Kit-fusible link,0,8 mm |
2202607 |
US $35.26 |
||
|
4
|
4
2202670 Kit-fusible link,1,0mm |
2202670 |
US $35.26 |
||
|
5
|
5
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
6
|
6
2410692 Breaker-circuit,10 amp,sealed |
2410692 |
US $12.20 |
||
|
7
|
7
4012193
Relay, solid state, 9 amp
|
4012193 |
— | ||
|
8
|
8
7512026
Screw
|
7512026 |
— | ||
|
9
|
9
4010859 Fuse-15amp,mini blade |
4010859 |
US $2.28 |
||
|
10
|
10
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
11
|
11
2411121 Harness,box,ranger |
2411121 |
US $219.78 |
||
|
12
|
12
2411070
Harness-dash,4x4,500
|
2411070 |
— | ||
|
13
|
13
7518375 Scr-1/4-20x1,50 tr/tx-m |
7518375 |
US $1.75 |
||
|
14
|
14
4020139 Clip,rosebud |
4020139 |
US $3.26 |
||
|
15
|
15
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
