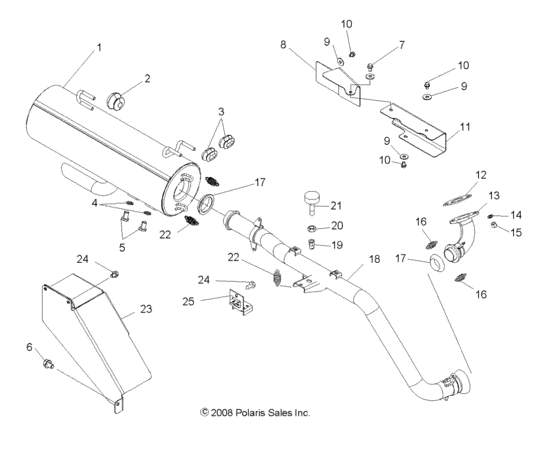

Engine, exhaust (R09HH50AG/AR) Diagram Polaris RANGER 500 4X4 EFI
- Model code
- R09HH50AG/AR
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1262047-489 Weld-silencer,blk |
1262047-489 |
US $835.08 |
||
|
2
|
2
5413377 Grommet-silencer mount |
5413377 |
US $6.56 |
||
| replacement | |||||
|
2
|
2
5414307 Grommet-silencer mount |
5414307 |
US $7.88 |
||
|
3
|
3
5436598 Grommet-silencer mount |
5436598 |
US $6.56 |
||
|
4
|
4
7556230 Washer-clean out ,51x,75x,09 (1 |
7556230 |
US $0.79 |
||
|
5
|
5
7512666 Bolt |
7512666 |
US $3.75 |
||
|
6
|
6
7518555 Polaris Hex Flange Bolt |
7518555 |
US $3.94 |
||
|
7
|
7
7518490 Scr-1/4-20x1/2,tfm hw-m |
7518490 |
US $0.79 |
||
|
8
|
8
5248786
Shield-heat,exhaust,side
|
5248786 |
— | ||
|
9
|
9
7555935 Washer |
7555935 |
US $3.26 |
||
|
10
|
10
7515197 Screw(10) * |
7515197 |
US $0.79 |
||
|
11
|
11
5246455 Shield-heat,exhaust,top |
5246455 |
US $13.20 |
||
|
12
|
12
3085075 Asm,,gasket(exhaust) |
3085075 |
US $50.19 |
||
|
13
|
13
1261951-489 Weld-manifold,blk |
1261951-489 |
US $181.18 |
||
|
14
|
14
3080051
Washer, spring
|
3080051 |
— | ||
| replacement | |||||
|
14
|
14
3080530 Washer, spring lock |
3080530 |
US $1.89 |
||
|
15
|
15
3087199 Nut |
3087199 |
US $1.49 |
||
|
16
|
16
7041804 Spring |
7041804 |
US $9.85 |
||
|
17
|
17
5243518 Seal,exhaust |
5243518 |
US $35.12 |
||
|
18
|
18
1261950-489 Weld-tube,exhaust,blk |
1261950-489 |
US $125.44 |
||
|
19
|
19
7547101 Nutsert-5/16-18(,027-,150),hxy |
7547101 |
US $7.68 |
||
|
20
|
20
7542301 Nut hex |
7542301 |
US $2.45 |
||
|
21
|
21
3021522 Mount-torque stop |
3021522 |
US $14.28 |
||
|
22
|
22
7041687 Spring |
7041687 |
US $7.88 |
||
|
23
|
23
5248491 Shield-heat,tank |
5248491 |
US $128.21 |
||
|
24
|
24
7518513 Bolt-m6x1,0x15,hxflg,tap/r-od |
7518513 |
US $2.45 |
||
|
25
|
25
5252407-329
Bracket, exhaust mount, black
|
5252407-329 |
— | ||
