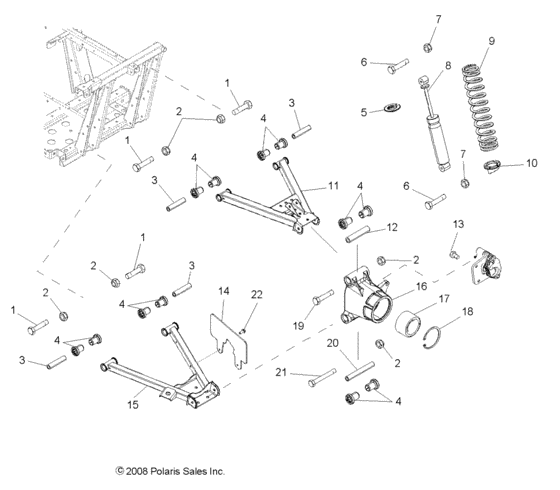

Suspension, rear (R09HH50AG/AR) Diagram Polaris RANGER 500 4X4 EFI
- Model code
- R09HH50AG/AR
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518560
Bolt-m10x1,25x95,hxflg-olive d
|
7518560 |
— | ||
|
2
|
2
7547333 Nut-m10x1,25,flg,nyloc-olive d |
7547333 |
US $39.40 |
||
|
3
|
3
5335448
Tube-pivot,73,96mm
|
5335448 |
— | ||
|
4
|
4
5434548 Bushing-a-arm-short,blk |
5434548 |
US $65.60 |
||
| replacement | |||||
|
4
|
4
5439270 Bushing-a-arm-short,blk |
5439270 |
US $3.94 |
||
|
5
|
5
5251753 Retainer-spring,steel |
5251753 |
US $12.79 |
||
|
6
|
6
7518563 Bolt-m10x1,25x60,hxflg-olive d |
7518563 |
US $4.73 |
||
|
7
|
7
7547333 Nut-m10x1,25,flg,nyloc-olive d |
7547333 |
US $39.40 |
||
|
8
|
8
7043491 Shock-rear,411,5mm ext |
7043491 |
US $100.73 |
||
|
9
|
9
7042334-067 Spring-200#/12,75,blk |
7042334-067 |
US $76.81 |
||
|
10
|
10
5630551 Cam,adjust,spring |
5630551 |
US $16.24 |
||
|
11
|
11
1016730-067 Weld-control arm,upper,blk |
1016730-067 |
US $152.43 |
||
|
12
|
12
5136580
Shaft-a-arm,upper,rear,metric
|
5136580 |
— | ||
| replacement | |||||
|
12
|
12
5137592 Shaft-pivot,89.71mm,zinc yel |
5137592 |
US $7.88 |
||
|
13
|
13
7518558
Bolt-m10x1,25x20,hxflg-olv d
Rear Caliper Attach; |
7518558 |
— | ||
|
14
|
14
5437816-070 Shield-cv,rear,blk |
5437816-070 |
US $7.40 |
||
|
15
|
15
1016350-067 Weld-control arm,lwr,lh,blk |
1016350-067 |
US $79.17 |
||
|
15
|
15
1016351-067 Weld-control arm,lwr,rh,blk |
1016351-067 |
US $79.17 |
||
|
16
|
16
5136544 Carrier-bearing,wheel,rh(mach) |
5136544 |
US $78.79 |
||
|
16
|
16
5136543 Carrier-bearing,wheel,lh(mach) |
5136543 |
US $78.79 |
||
|
17
|
17
3585502
Bearing
|
3585502 |
— | ||
| replacement | |||||
|
17
|
17
3514635 Bearing-wheel,40x74x40mmAnalog Koyo DAC4074W12CS47 |
3514635 |
US $59.06 |
||
|
18
|
18
7710440 Ring,retaining |
7710440 |
US $12.79 |
||
|
19
|
19
7518566 Bolt-m10x1,25x115,hxflg-olived |
7518566 |
US $9.85 |
||
|
20
|
20
5136581
Shaft-a-arm,lower,rear,metric
|
5136581 |
— | ||
| replacement | |||||
|
20
|
20
5137593 Shaft-pivot,115.11mm,zinc yel |
5137593 |
US $6.56 |
||
|
21
|
21
7518562 Bolt-m10x1,25x140,hxflg-olv d |
7518562 |
US $9.85 |
||
|
22
|
22
7512084 Screw(10) |
7512084 |
US $19.60 |
||
