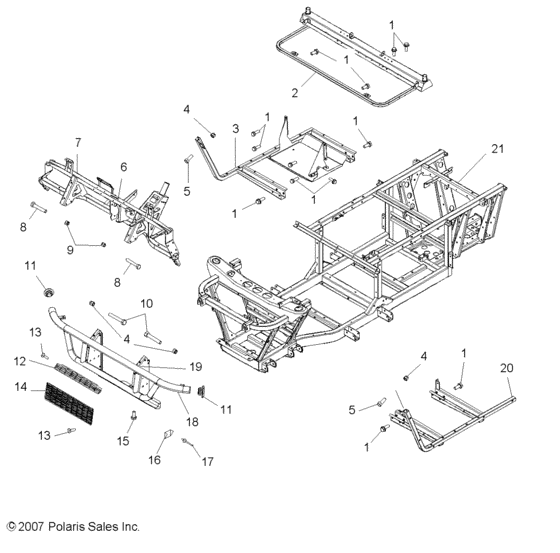

Chassis, frame and front bumper (R08RH68 ALL OPTIONS) Diagram Polaris RANGER 700 4X4 EFI/XP
- Model code
- R08RH68
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
2
|
2
1015312-067
Weld-cab/seat base,blk
|
1015312-067 |
— | ||
|
3
|
3
1015378-067 Weld-floor supt,rh,blk |
1015378-067 |
US $142.80 |
||
|
4
|
4
7547180 Nut-flanged,3/8-16 nylon-z (10) |
7547180 |
US $3.20 |
||
|
5
|
5
7515522 Bolt |
7515522 |
US $3.26 |
||
|
6
|
6
5521131 Trim,edge,6ft,black |
5521131 |
US $33.50 |
||
|
7
|
7
1015992-067
Weld-cab support,frt,blk
|
1015992-067 |
— | ||
|
8
|
8
7515415 Screw(10) |
7515415 |
US $1.49 |
||
|
9
|
9
7542439 Nut,nylok(10) |
7542439 |
US $1.96 |
||
|
10
|
10
7518278 Scr-3/8-16x2 flg hx gr5 z |
7518278 |
US $25.16 |
||
|
11
|
11
5434191 Cap-bumper (10) |
5434191 |
US $4.15 |
||
|
12
|
12
5248846-385
Plate-grille,bumper,top,cl slv
AJ; |
5248846-385 |
— | ||
|
12
|
12
5248846-418
Plate-grille,bumper,top,fbw
AG;AH;AK;AL;AP;AR;AS;AM; |
5248846-418 |
— | ||
|
13
|
13
7517916 Scr-1/4-20x3/4-tr/tx/tap-m |
7517916 |
US $5.22 |
||
|
14
|
14
5248845-418
Plate-grille,bumper,upper,fbw
AG;AH;AK;AL;AP;AR;AS;AM; |
5248845-418 |
— | ||
|
14
|
14
5248845-385
Plate-grille,bumper,upr,cl slv
AJ; |
5248845-385 |
— | ||
|
14
|
14
5250861-418 Plate-grill,winch,fbwAL;AS; |
5250861-418 |
US $71.89 |
||
|
15
|
15
7517854 Scr-3/8-16x1-p30-spec-y |
7517854 |
US $4.43 |
||
|
16
|
16
5436987 Cup-hood latch |
5436987 |
US $7.16 |
||
|
17
|
17
7621334 Rivet(50) |
7621334 |
US $187.50 |
||
|
18
|
18
1015909-385 Weld-bumper, c, silverAJ; |
1015909-385 |
US $913.87 |
||
|
18
|
18
1015909-418 Weld-bumper,fbwAG;AH;AK;AL;AP;AR;AS;AM; |
1015909-418 |
US $835.08 |
||
|
19
|
19
7079924
Decal-reflect,2,88,amber
|
7079924 |
— | ||
|
20
|
20
1015068-067 Floor support,lh,blk |
1015068-067 |
US $142.80 |
||
|
21
|
21
1016012-067
Weld-main frame,blk
|
1016012-067 |
— |
