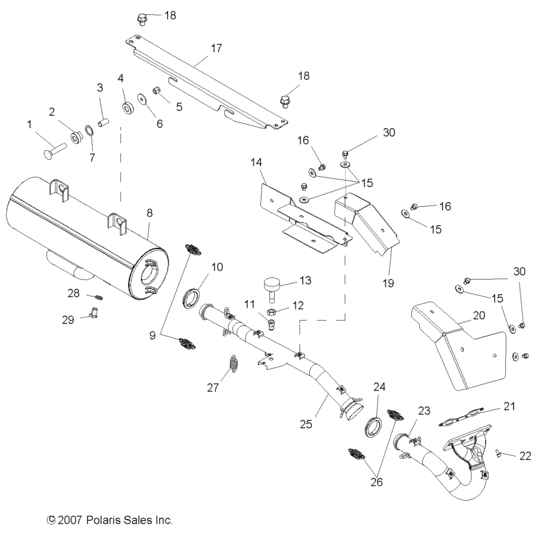

Engine, exhaust (R08RF68AD/AF/AZ) Diagram Polaris RANGER 700 6X6 EFI
- Model code
- R08RF68AD/AF/AZ
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515316 Bolt |
7515316 |
US $2.98 |
||
|
2
|
2
5412508 Dampener-vibration |
5412508 |
US $4.10 |
||
|
3
|
3
5010192 Bushing |
5010192 |
US $4.94 |
||
|
4
|
4
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
5
|
5
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
6
|
6
7555716 Washer |
7555716 |
US $2.45 |
||
|
7
|
7
7555863 Washer |
7555863 |
US $3.75 |
||
|
8
|
8
1261298-029
Silencer, black
|
1261298-029 |
— | ||
|
9
|
9
7041804 Spring |
7041804 |
US $9.85 |
||
|
10
|
10
5243518 Seal,exhaust |
5243518 |
US $35.12 |
||
|
11
|
11
7547101 Nutsert-5/16-18(,027-,150),hxy |
7547101 |
US $7.68 |
||
|
12
|
12
7542301 Nut hex |
7542301 |
US $2.45 |
||
|
13
|
13
3021522 Mount-torque stop |
3021522 |
US $14.28 |
||
|
14
|
14
5249820 Shield-heat,exhaust,rear |
5249820 |
US $21.21 |
||
|
15
|
15
7555935 Washer |
7555935 |
US $3.26 |
||
|
16
|
16
7515197 Screw(10) * |
7515197 |
US $0.79 |
||
|
17
|
17
5248921-067
Brkt-exhaust mnt,blk
|
5248921-067 |
— | ||
|
18
|
18
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
19
|
19
5249821 Shield-heat,exhaust |
5249821 |
US $61.93 |
||
|
20
|
20
5249867 Shield-exhaust,manifold |
5249867 |
US $21.21 |
||
|
21
|
21
5811511 Gasket,26mm id |
5811511 |
US $61.57 |
||
|
22
|
22
7517322 Screw(10) |
7517322 |
US $39.40 |
||
|
23
|
23
1261724 Weld-manifold,twin,s,s, |
1261724 |
US $472.68 |
||
|
24
|
24
3610047 Seal,exh.socket |
3610047 |
US $46.17 |
||
|
25
|
25
1261620-029
Pipe, exhaust, black
|
1261620-029 |
— | ||
|
26
|
26
7041789 Spring |
7041789 |
US $9.07 |
||
|
27
|
27
7041687 Spring |
7041687 |
US $7.88 |
||
|
28
|
28
7556230 Washer-clean out ,51x,75x,09 (1 |
7556230 |
US $0.79 |
||
|
29
|
29
7512666 Bolt |
7512666 |
US $3.75 |
||
|
30
|
30
7518490 Scr-1/4-20x1/2,tfm hw-m |
7518490 |
US $0.79 |
