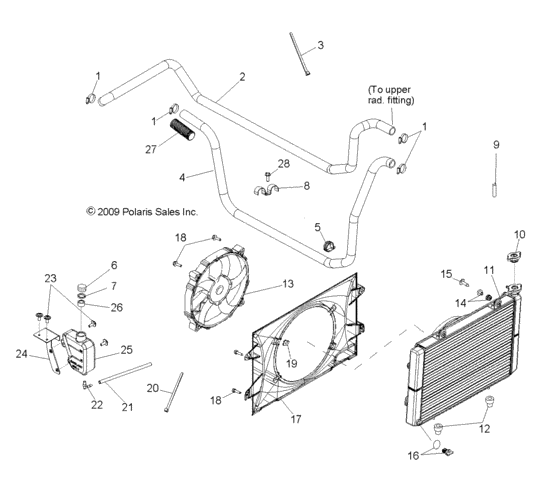

Engine, cooling system (R10TH76/TY76 ALL OPTIONS) Diagram Polaris RANGER 800 4X4 EFI
- Model code
- R10TH76/TY76
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7081174 Clamp-hose,13/16"-1 1/2" |
7081174 |
US $9.85 |
||
|
2
|
2
5413488 Hose-1" id rad inlet |
5413488 |
US $127.05 |
||
|
3
|
3
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
4
|
4
5413830 Hose-1" id rad outlet |
5413830 |
US $112.65 |
||
|
5
|
5
7080869 Clamp-p,cushioned,1,25" i,d, |
7080869 |
US $9.85 |
||
|
6
|
6
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
7
|
7
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
8
|
8
5438331 Clip-coolant,routing |
5438331 |
US $3.26 |
||
|
9
|
9
8360012-10
Trim, edge
|
8360012-10 |
— | ||
|
10
|
10
1240300 Cap-pressure |
1240300 |
US $34.67 |
||
|
11
|
11
1240385 Radiator-flatBuilt 11/12/09 and Before; |
1240385 |
US $595.28 |
||
|
11
|
11
1240528
Radiator, flat
Built 11/13/09 and After; |
1240528 |
— | ||
|
12
|
12
5410584
Bushing-mount,lower radiator
|
5410584 |
— | ||
|
13
|
13
2410413 Fan-11" assembly,pkrdBuilt 3/15/10 and After; |
2410413 |
US $253.10 |
||
|
13
|
13
2411219
Asm., fan
Built 3/14/10 and Before; |
2411219 |
— | ||
|
14
|
14
5413155 Asm-grommet & insert |
5413155 |
US $3.26 |
||
|
15
|
15
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
16
|
16
7052410 Valve-plastic rad/cooler drain |
7052410 |
US $17.24 |
||
|
17
|
17
5436851
Shroud, fan
|
5436851 |
— | ||
|
18
|
18
7516822
Screw
|
7516822 |
— | ||
|
19
|
19
7547366
Clip-"u",m6,0x1,0
|
7547366 |
— | ||
|
20
|
20
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
21
|
21
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
22
|
22
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
23
|
23
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
24
|
24
5252305-329 Bracket, surge tank, black |
5252305-329 |
US $14.28 |
||
|
25
|
25
5436936 Tank-surge |
5436936 |
US $79.31 |
||
|
26
|
26
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
27
|
27
5521287-18
Conduit,flex,1,250id
|
5521287-18 |
— | ||
| replacement | |||||
|
27
|
27
5521287-20
Conduit,flex,1,250id
|
5521287-20 |
— | ||
|
28
|
28
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
