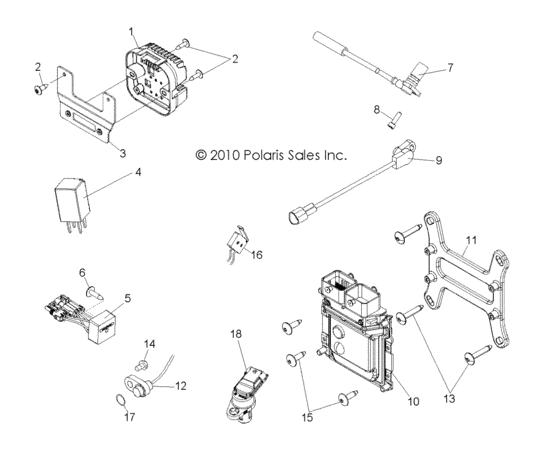

Electrical, regulator, relays, sensors and ecu (R11TH76/TY76 ALL OPTIONS) Diagram Polaris RANGER 800 4X4 EFI
- Model code
- R11TH76/TY76
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4012941 Regulator-3ph,35a,series,105c |
4012941 |
US $244.51 |
||
|
2
|
2
7518280 Scr-1/4-20x,75,tr/tx-m |
7518280 |
US $3.94 |
||
|
3
|
3
5254622-329 Brkt-mount,regulator,blk |
5254622-329 |
US $8.17 |
||
|
4
|
4
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
5
|
5
4012829 Relay, solid state,9a,long ldDifferential Control; |
4012829 |
US $72.96 |
||
|
6
|
6
7518375 Scr-1/4-20x1,50 tr/tx-m |
7518375 |
US $1.75 |
||
|
7
|
7
2410720 Sensor-crank position |
2410720 |
from US $91.60 |
||
|
8
|
8
7519224 Scr-hxfl-m6x1.0x20 8.8 zy3d204 |
7519224 |
US $1.49 |
||
|
10
|
10
4012838 Service ecu, all my11 800 dom t |
4012838 |
US $567.23 |
||
|
11
|
11
5438369-070 Mnt-mid,ecu,blk |
5438369-070 |
US $8.17 |
||
|
12
|
12
4012167
Sensor-speed,trans
Included w/Main Gearcase; |
4012167 |
— | ||
| replacement | |||||
|
12
|
12
4013908 Sensor-speed,transIncluded w/Main Gearcase; |
4013908 |
US $103.36 |
||
|
13
|
13
7518158 Scr-#14x1 hi/lo-ph-pn trx-m |
7518158 |
US $3.26 |
||
|
14
|
14
3234247 Screw,tappinghexhead1/4-20x,75 |
3234247 |
US $3.94 |
||
|
15
|
15
7512026
Screw
|
7512026 |
— | ||
|
16
|
16
1911443
Switch-park brake,svc
|
1911443 |
— | ||
|
17
|
17
3234302 O-ring, -113Included w/Main Gearcase; |
3234302 |
US $9.24 |
||
