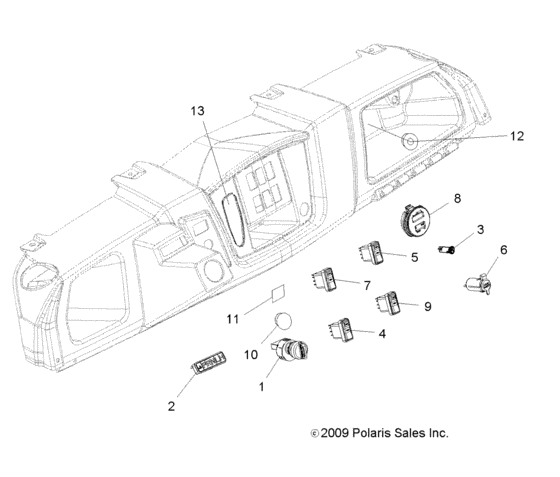

Electrical, dash instruments and controls (R10RC08GA/GH/FA/FH) Diagram Polaris RANGER EV/INTL 4X4
- Model code
- R10RC08GA/GH/FA/FH
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4012637 Switch-key,48v |
4012637 |
US $70.14 |
||
|
2
|
2
4012693 Panel, indicator, ev |
4012693 |
US $108.76 |
||
|
3
|
3
4012828 Indicator, charge, led |
4012828 |
US $99.82 |
||
|
4
|
4
4012982 Switch, fnr |
4012982 |
US $102.06 |
||
|
5
|
5
4012702 Switch, mode, 3 position |
4012702 |
US $59.10 |
||
|
6
|
6
4012393
Receptacle-pod mnt,12 volt
|
4012393 |
— | ||
|
7
|
7
4011500 Switch-headlight |
4011500 |
US $54.18 |
||
|
8
|
8
4012658 Gauge, charge indicator |
4012658 |
US $139.53 |
||
|
9
|
9
4012747 Switch, awd |
4012747 |
US $51.98 |
||
|
10
|
10
5413239 Grommet-choke hole |
5413239 |
US $1.98 |
||
|
11
|
11
5438290 Plug, hour meter |
5438290 |
US $5.18 |
||
|
12
|
12
5813530 Grommet |
5813530 |
US $1.66 |
||
|
13
|
13
5413882 Grommet, park brake |
5413882 |
US $24.43 |
