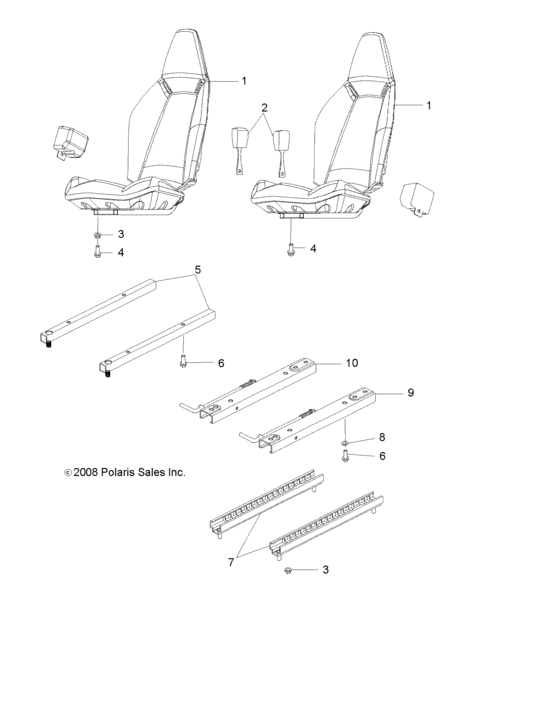

Body, seat, mounting and belts (A09VA17AA/AD) Diagram Polaris RANGER RZR 170
- Model code
- A09VA17AA/AD
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0454289-070 Asm-seat,rzr-y,blkAA; |
0454289-070 |
US $622.37 |
||
|
1
|
1
0454289-544
Asm-seat,rzr-y,pink
AD; |
0454289-544 |
— | ||
|
2
|
2
0454304
Asm., seat belt
|
0454304 |
— | ||
|
3
|
3
0450268 Nut-flange(10) |
0450268 |
US $0.79 |
||
|
4
|
4
0452031 Bolt-hex,16,washer,nylock |
0452031 |
US $10.82 |
||
|
5
|
5
0454390 Mount-seat |
0454390 |
US $37.63 |
||
|
6
|
6
0450805 Bolt,hex socket(10) |
0450805 |
US $1.89 |
||
|
7
|
7
0454389 Guide-seat,lower |
0454389 |
US $48.84 |
||
|
8
|
8
0452201 Washer-flat |
0452201 |
US $0.79 |
||
|
9
|
9
0454387 Guide-seat,upper,lh |
0454387 |
US $51.21 |
||
|
10
|
10
0454388 Guide-seat,upper,rh |
0454388 |
US $51.21 |
