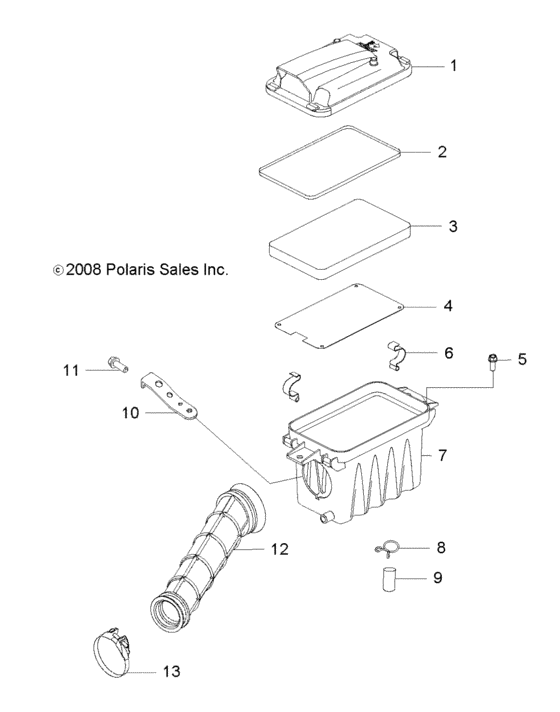

Engine, air intake system (A09VA17AA/AD) Diagram Polaris RANGER RZR 170
- Model code
- A09VA17AA/AD
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0454321
Cover, air box
|
0454321 |
— | ||
|
2
|
2
0453484 Gasket-cover,airbox |
0453484 |
US $4.94 |
||
|
3
|
3
0454620 Foam-intake,air cleaner |
0454620 |
US $30.54 |
||
|
4
|
4
0453663 Holder-air filter |
0453663 |
US $11.83 |
||
|
5
|
5
0450340
Bolt
|
0450340 |
— | ||
|
6
|
6
0453660
Clip-airbox,outlaw
|
0453660 |
— | ||
|
7
|
7
0453662 Box-air cleaner |
0453662 |
US $41.76 |
||
|
8
|
8
0453661 Clip |
0453661 |
US $2.45 |
||
|
9
|
9
0453725 Hose-drain |
0453725 |
US $4.34 |
||
|
10
|
10
0453666 Brkt-mount,air box |
0453666 |
US $17.24 |
||
|
11
|
11
0453518 Bolt |
0453518 |
US $1.77 |
||
|
12
|
12
0454322 Boot-box,air |
0454322 |
US $46.34 |
||
|
13
|
13
0454277 Clamp, hose |
0454277 |
US $12.20 |
