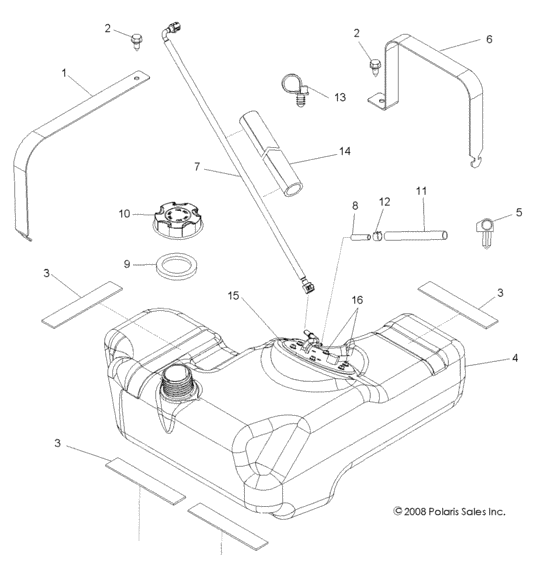

Body, fuel tank (R09VH76 ALL OPTIONS) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R09VH76
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5250517 Brkt-tank,rr |
5250517 |
US $39.95 |
||
|
2
|
2
7517312 Screw (10) |
7517312 |
US $1.89 |
||
|
3
|
3
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
4
|
4
2521011 Asm-fuel pump |
2521011 |
US $599.71 |
||
|
4
|
4
2520914
Asm-fuel tank
Incl. 15,16, Pump; |
2520914 |
— | ||
|
5
|
5
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
6
|
6
5250520 Brkt-tank,front |
5250520 |
US $41.35 |
||
|
7
|
7
2520933 Asm-fuel line, tank to rail |
2520933 |
US $115.80 |
||
|
8
|
8
83600653
Line
|
83600653 |
— | ||
|
9
|
9
5812123 Gasket |
5812123 |
US $10.03 |
||
|
10
|
10
5433687 Cap,gas tank |
5433687 |
US $24.08 |
||
|
11
|
11
8450003-184
Line, fuel
Vent; |
8450003-184 |
— | ||
|
12
|
12
7080307 Clamp,hose(10) |
7080307 |
US $0.79 |
||
|
13
|
13
7081334 Strap-tree mount cable tie |
7081334 |
US $2.28 |
||
|
14
|
14
8360054-66 Conduit-flex,slt,5/8hitmp-66cm |
8360054-66 |
US $7.68 |
||
|
15
|
15
5413513 Oring-88,49idx3,53,viton |
5413513 |
US $13.20 |
||
|
16
|
16
7518045 Scr-m5x,80x8-hx/fl-y/d |
7518045 |
US $8.66 |
