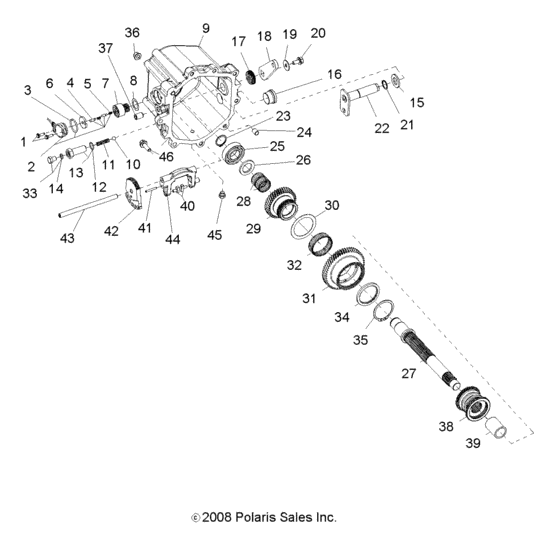

Drive train, main gearcase intl comp 2 (R09VH76 ALL OPTIONS; BUILT 10/16/08 AND AFTER) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R09VH76
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3234525 Scr-#10-24x,615,fl(026hm111-1) |
3234525 |
US $7.68 |
||
|
2
|
2
3234871 Asm-sensor(026ls106x)Incl. 3-5; |
3234871 |
US $401.61 |
||
|
6
|
6
3234523 Spacer(026hs118) |
3234523 |
US $9.85 |
||
|
7
|
7
3234522 Sensor-drum gear(026gs100) |
3234522 |
US $40.58 |
||
|
8
|
8
3234521 Washer(3652) |
3234521 |
US $5.22 |
||
|
9
|
9
3234890 Asm-cover,shift housingIncl. 17; |
3234890 |
US $333.81 |
||
|
10
|
10
3234520 Ball-gearcase(5947) |
3234520 |
US $3.15 |
||
|
11
|
11
3234870 Spring-comp(dia 5/16x1,56) |
3234870 |
US $7.09 |
||
|
13
|
13
3234481 Asm-sleeve,detentIncl. 12; |
3234481 |
US $43.51 |
||
|
15
|
15
3234899 WasherIncl. 14; |
3234899 |
US $10.83 |
||
|
16
|
16
5133736 Plug-fill/check |
5133736 |
US $18.32 |
||
|
17
|
17
3234493 Seal-oil(7088) |
3234493 |
US $15.75 |
||
|
18
|
18
3234492 Lever-shift cable(026sv106) |
3234492 |
US $25.62 |
||
|
19
|
19
3234491 Washer(3760) |
3234491 |
US $3.75 |
||
|
20
|
20
3234490 Scr-5/16-18x,620(41302) |
3234490 |
US $3.75 |
||
|
21
|
21
3234494 Ring-retaining(7063) |
3234494 |
US $5.25 |
||
|
22
|
22
3234900 Asm-shifter |
3234900 |
US $86.64 |
||
|
23
|
23
3234893 Ring-retaining (012hr133) |
3234893 |
US $3.64 |
||
|
24
|
24
3234503 Bushing-dowel(026hp105) |
3234503 |
US $2.77 |
||
|
25
|
25
3234502 Bearing-ball,6205(585965) |
3234502 |
US $46.08 |
||
|
26
|
26
3234510 Washer-thrust(026hs110) |
3234510 |
US $14.09 |
||
|
27
|
27
3234872 Asm-clutch shaft(026ss110) |
3234872 |
US $330.87 |
||
|
28
|
28
3234532 Bearing-needle(012hd152) |
3234532 |
US $28.14 |
||
|
29
|
29
3234873 Gear-clutch,high,38t(026gs129) |
3234873 |
US $518.26 |
||
|
30
|
30
3234887 Washer-thrust(026hn113) |
3234887 |
US $24.43 |
||
|
31
|
31
3234535
Gear-clutch,low,53t(026gs115x)
|
3234535 |
— | ||
|
32
|
32
3234536 Bearing-needle(026hd105) |
3234536 |
US $31.52 |
||
|
33
|
33
3234869 Asm-screw,hex,(026ky103x)Incl. 14; |
3234869 |
US $7.68 |
||
|
34
|
34
3234874
Plate-retaining,(026hr115)
|
3234874 |
— | ||
|
35
|
35
3234879 Ring-retaining(026hr116) |
3234879 |
US $7.09 |
||
|
36
|
36
3234500 Nut-flange(026hn107) |
3234500 |
US $2.45 |
||
|
37
|
37
3234484 Screw-set(026hm106) |
3234484 |
US $3.75 |
||
|
38
|
38
3234875 Asm-shift collar(026gs130) |
3234875 |
US $964.48 |
||
|
39
|
39
3234876 Spacer-park/reverse(026hs126) |
3234876 |
US $79.35 |
||
|
40
|
40
3234868 Blade-clutch yoke(026sv119) |
3234868 |
US $15.05 |
||
|
41
|
41
3234487 Pin-spring(500596-15) |
3234487 |
US $9.24 |
||
|
42
|
42
3234486
Plate-detent gear(026sv109)
|
3234486 |
— | ||
|
43
|
43
3234914 Pin-pivot(026hp111) |
3234914 |
US $19.69 |
||
|
44
|
44
3234867
Asm-clutch yoke(026sv118x)
|
3234867 |
— | ||
|
45
|
45
5133731 Plug-drain |
5133731 |
US $9.15 |
||
|
46
|
46
7518172 Bolt-hex,flanged,026hm103 |
7518172 |
US $2.45 |
