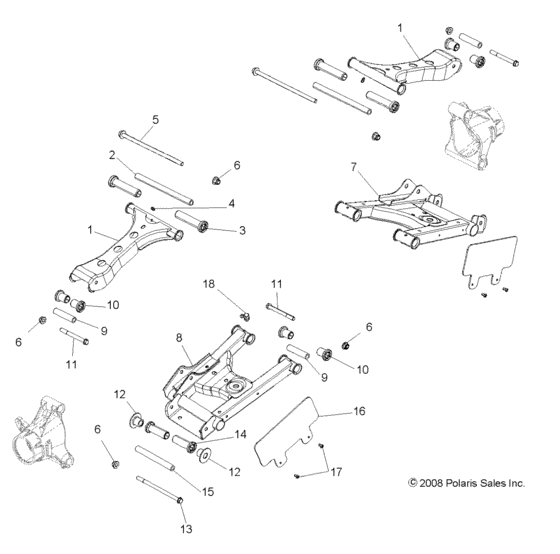

Suspension, rear control arms (R09VH76 ALL OPTIONS) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R09VH76
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1015450-458
Weld-control arm,upr,rr,m,blk
|
1015450-458 |
— | ||
|
2
|
2
5136468
Tube-pivot, 210,27mm
|
5136468 |
— | ||
|
3
|
3
5436973 Bushing-a-arm,long,102,36mm |
5436973 |
US $10.83 |
||
|
4
|
4
7080433 Fitting,lubrication,threaded(10 |
7080433 |
US $5.25 |
||
|
5
|
5
7519086 Scr-hxfl-m10x1,25x235 10,9 zod |
7519086 |
US $24.61 |
||
|
6
|
6
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
||
|
7
|
7
1015451-458
Weld-ctrl arm,lwr,rr,lh,m,blk
|
1015451-458 |
— | ||
|
8
|
8
1015452-458
Weld-ctrl arm,lwr,rr,rh,m,blk
|
1015452-458 |
— | ||
|
9
|
9
5136100 Tube-pivot,70,99mm,10,33id |
5136100 |
US $14.77 |
||
|
10
|
10
5436832
Bushing-control arm,1,285
|
5436832 |
— | ||
| replacement | |||||
|
10
|
10
5439874 Bushing-standard,orv |
5439874 |
US $39.40 |
||
|
11
|
11
7518468 Bolt-m10x1,5x95,hx hd flg |
7518468 |
US $3.94 |
||
|
12
|
12
5136102 Bushing-pivot,wear,10,33 d |
5136102 |
US $9.85 |
||
|
13
|
13
7518668 Bolt-m10x1,5x165,hxhdflg |
7518668 |
US $4.73 |
||
|
14
|
14
5437229 Bushing-control arm,wear |
5437229 |
US $7.89 |
||
|
15
|
15
5136101
Tube-pivot,107,26mm,10,33id
|
5136101 |
— | ||
|
16
|
16
5436014-070 Shield-cv,rear,blk |
5436014-070 |
US $9.15 |
||
|
17
|
17
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
18
|
18
7080510 Fitting, zerk,90 degree |
7080510 |
US $7.68 |
||
