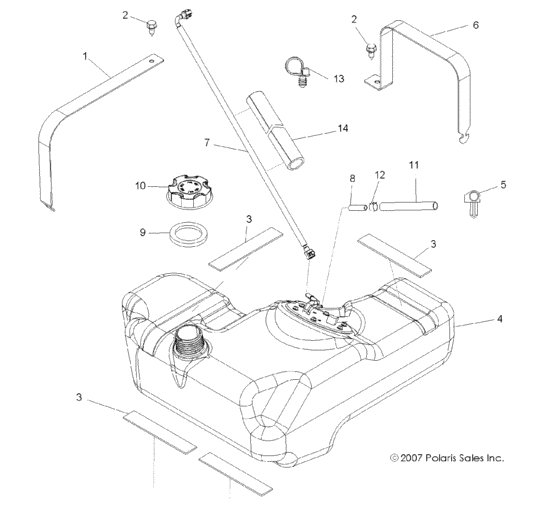

Fuel tank (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5250517 Brkt-tank,rr |
5250517 |
US $39.95 |
||
|
2
|
2
7515179 Screw |
7515179 |
US $2.98 |
||
|
3
|
3
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
4
|
4
2520595
Asm., tank, molded
|
2520595 |
— | ||
|
5
|
5
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
6
|
6
5250520 Brkt-tank,front |
5250520 |
US $41.35 |
||
|
7
|
7
2520597 Asm-fuel line, tank to rail |
2520597 |
US $101.45 |
||
|
8
|
8
83600653
Line
|
83600653 |
— | ||
|
9
|
9
5812123 Gasket |
5812123 |
US $10.03 |
||
|
10
|
10
5433687 Cap,gas tank |
5433687 |
US $24.08 |
||
|
11
|
11
8450003-184
Line, fuel
Vent; |
8450003-184 |
— | ||
|
12
|
12
7080307 Clamp,hose(10) |
7080307 |
US $0.79 |
||
|
13
|
13
7081334 Strap-tree mount cable tie |
7081334 |
US $2.28 |
||
|
14
|
14
8360054-64
Conduit, flex
|
8360054-64 |
— |
