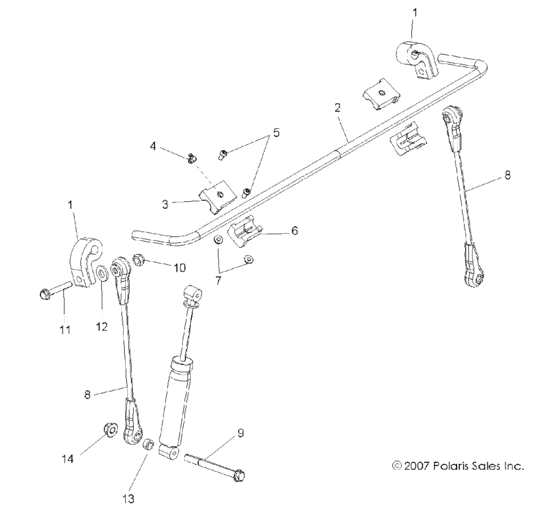

Stabilizer bar, front (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5135395 Clamp-stab bar, frt(mach) |
5135395 |
US $91.05 |
||
|
2
|
2
5334947-329 Bar-stabilizer, front |
5334947-329 |
US $86.68 |
||
|
3
|
3
5436513
Bushing-swaybar,lower
|
5436513 |
— | ||
|
4
|
4
7080438 Fitting, lube, |
7080438 |
US $8.66 |
||
|
5
|
5
7518656 Bolt-m6x1,0x15,ph/tx-olive d |
7518656 |
US $3.94 |
||
|
6
|
6
5436480
Bushing-sway bar
|
5436480 |
— | ||
|
7
|
7
7547339
Nut-m6x1,0,flg-nyloc-olive d
|
7547339 |
— | ||
|
8
|
8
1521115 Asm-link,sway bar |
1521115 |
US $79.35 |
||
|
9
|
9
7518466 Bolt-m10x1,5x85,hx hd flg |
7518466 |
US $5.25 |
||
|
10
|
10
7547385 Nut-ny ins,m10x1,5,hex,zinc,yw |
7547385 |
US $1.49 |
||
|
11
|
11
7518474 Bolt-m10x1,5x55,hx hd flg |
7518474 |
US $3.26 |
||
|
12
|
12
7555806 Washer,flat(10) |
7555806 |
US $13.10 |
||
|
13
|
13
5334945 Spacer-,625x,407x,375 |
5334945 |
US $3.26 |
||
|
14
|
14
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
