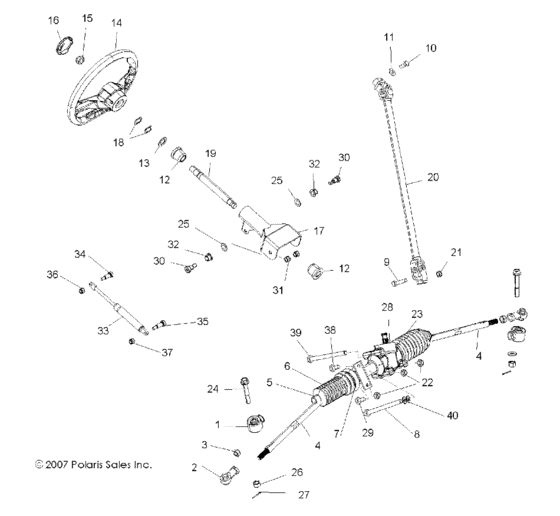

Steering (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411920
Boot, seal
|
5411920 |
— | ||
| replacement | |||||
|
1
|
1
5412929 Boot-seal,rod end,10mm |
5412929 |
US $11.81 |
||
|
2
|
2
7061054
Rod, end, lh
|
7061054 |
— | ||
| replacement | |||||
|
2
|
2
7061138 Rod-end,10mm,1/2-20lh,42 deg |
7061138 |
US $59.06 |
||
|
3
|
3
7547028
Nut,jam,lh(10)
|
7547028 |
— | ||
|
5
|
5
7080978 Clamp-boot,small |
7080978 |
US $3.94 |
||
|
6
|
6
5412013 Boot-passenger,side rack |
5412013 |
US $77.16 |
||
|
7
|
7
7080979 Clamp-boot,large |
7080979 |
US $9.19 |
||
|
8
|
8
7515382 Bolt(10) |
7515382 |
US $2.98 |
||
|
9
|
9
7515434 Screw |
7515434 |
US $4.43 |
||
|
10
|
10
7517924 Bolt-cap m8x1,25 |
7517924 |
US $6.69 |
||
|
11
|
11
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
12
|
12
5434106 Bushing-steering shaft |
5434106 |
US $8.17 |
||
|
13
|
13
7556301 Bushing(10) |
7556301 |
US $2.77 |
||
|
14
|
14
1822919
Wheel, steering
|
1822919 |
— | ||
|
15
|
15
7547188 Nut-m16x2-6g |
7547188 |
US $3.75 |
||
|
16
|
16
5436536 Cap-steering wheel |
5436536 |
US $25.43 |
||
|
17
|
17
1015564-458
Weld-pivot tube,matte'blk
|
1015564-458 |
— | ||
|
18
|
18
7556063 Washer,wave |
7556063 |
US $9.85 |
||
|
19
|
19
1542289 Shaft-upper, steering |
1542289 |
US $25.60 |
||
|
20
|
20
1542290 Shaft-lower, steering |
1542290 |
US $204.82 |
||
|
21
|
21
7542439 Nut,nylok(10) |
7542439 |
US $1.96 |
||
|
22
|
22
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
23
|
23
5412012 Boot-driver side,rack |
5412012 |
US $75.78 |
||
|
24
|
24
7517909 Bolt-m10x1,25x65,hx wash hd |
7517909 |
US $7.68 |
||
|
25
|
25
7555919 Washer |
7555919 |
US $6.21 |
||
|
26
|
26
7547177 Nut-m10x1,25-hx-lock-y |
7547177 |
US $3.75 |
||
|
27
|
27
7661203 Pin,cotter(10) |
7661203 |
US $26.30 |
||
|
28
|
28
1823497 Asm-gear box, steeringIncl. 1-7,23; |
1823497 |
US $682.43 |
||
|
29
|
29
7512371 Bolt,5/16-18x3/4 |
7512371 |
US $2.45 |
||
|
30
|
30
7517607
Bolt,shoulder
|
7517607 |
— | ||
|
31
|
31
7542451
Nut, nylok(10) *
|
7542451 |
— | ||
|
32
|
32
5431107
Bushing, pedal pivot
|
5431107 |
— | ||
|
33
|
33
7043261 Asm-shock,oil locking |
7043261 |
US $127.05 |
||
|
34
|
34
7518786 Bolt-shoulder,m8-16,m6x1,0-y |
7518786 |
US $7.88 |
||
|
35
|
35
7518787 Bolt-shoulder,m10-12,m8x1,25-y |
7518787 |
US $4.73 |
||
|
36
|
36
7546703
Nut,nylok
|
7546703 |
— | ||
|
37
|
37
7547144 Nut,nylok m8x1,25(10) * |
7547144 |
US $0.79 |
||
|
38
|
38
7512325 BoltLock Patch; |
7512325 |
US $5.25 |
||
|
39
|
39
7518895 Scr-5/16-18x3,75 hxcp,gr5,lk-yLock Patch; |
7518895 |
US $2.28 |
||
|
40
|
40
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
