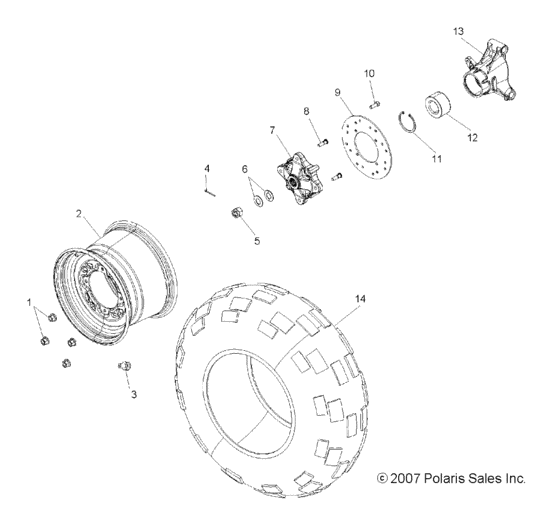

Wheel, rear (R08VH76AD/AG) Diagram Polaris RANGER RZR 800 EFI
- Model code
- R08VH76AD/AG
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547237 Nut-flange,two piece,3/8-24 |
7547237 |
US $39.40 |
||
|
2
|
2
1520992-463 Weld-rim,rear,12x8,10ga,fl,blk |
1520992-463 |
US $142.80 |
||
|
3
|
3
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
4
|
4
7661404 Pin, cotter |
7661404 |
US $5.25 |
||
|
5
|
5
7547337 Nut-m18x1,5,castle,zinc/yellow |
7547337 |
US $2.45 |
||
|
6
|
6
7555796 Washer, cone |
7555796 |
US $9.10 |
||
|
7
|
7
5135113
Hub-wheel,rear,mach
|
5135113 |
— | ||
| replacement | |||||
|
7
|
7
5143629 Hub-wheel,rear,mach |
5143629 |
US $120.07 |
||
|
8
|
8
7518378 Stud-3/8-24x1.38,press fit-z |
7518378 |
US $2.63 |
||
|
9
|
9
5248250 Disc-brake,rear,8,625x,188 |
5248250 |
US $95.38 |
||
|
10
|
10
7515522 Bolt |
7515522 |
US $3.26 |
||
|
11
|
11
7710440 Ring,retaining |
7710440 |
US $12.79 |
||
|
12
|
12
3585502
Bearing
|
3585502 |
— | ||
| replacement | |||||
|
12
|
12
3514635 Bearing-wheel,40x74x40mmAnalog Koyo DAC4074W12CS47 |
3514635 |
US $59.06 |
||
|
13
|
13
5134984 Carrier-bearing,wheel(mach)lh |
5134984 |
US $140.75 |
||
|
13
|
13
5134985 Carrier-bearing,wheel(mach)rh |
5134985 |
US $124.55 |
||
|
14
|
14
5413061 Tire-rear, 25x10-12 |
5413061 |
US $220.83 |
||
