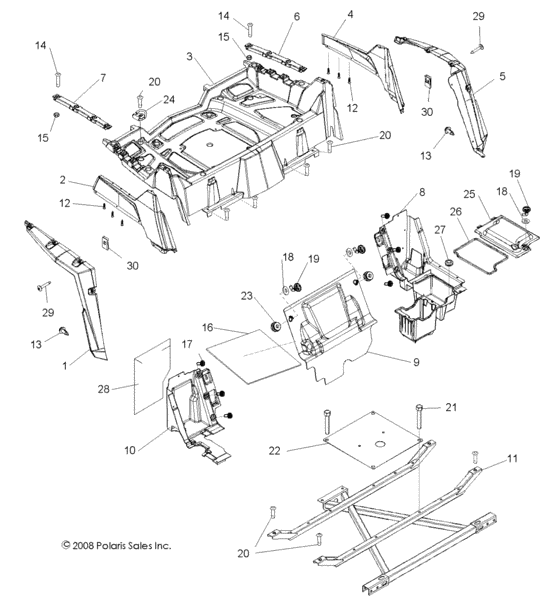

Body, rear rack and fenders (R09VH76FX) Diagram Polaris RANGER RZR "S" 800 EFI INTL
- Model code
- R09VH76FX
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5437662-070 Flair-rear fender,rh,lt,blk |
5437662-070 |
US $70.89 |
||
|
2
|
2
5437474-520 Rear fender-pntd,rh,sunset red |
5437474-520 |
US $336.79 |
||
|
3
|
3
2633871-070
Asm-rack,rear,quad,blk
Incl. Warning Decals; |
2633871-070 |
— | ||
|
4
|
4
5437472-520 Rear fender-pntd,lh,sunset red |
5437472-520 |
US $336.79 |
||
|
5
|
5
5437661-070 Flair-rear fender,lh,lt,blk |
5437661-070 |
US $70.89 |
||
|
6
|
6
5436849-070 Brkt-rack, tie down,lh,blk |
5436849-070 |
US $41.76 |
||
|
7
|
7
5436850-070 Brkt-rack, tie down,rh,blk |
5436850-070 |
US $41.76 |
||
|
8
|
8
5437395-070 Panel-divider,rear,lh,blk |
5437395-070 |
US $127.05 |
||
|
9
|
9
5437394-070 Panel-divider,rear,main,blk |
5437394-070 |
US $183.16 |
||
|
10
|
10
5437396-070 Panel-divider, rear,rh,blk |
5437396-070 |
US $65.99 |
||
|
11
|
11
1015565-329 Weld-rack support,rr,e-coat |
1015565-329 |
US $101.45 |
||
|
12
|
12
7517561 Screw |
7517561 |
US $5.25 |
||
|
13
|
13
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
14
|
14
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
15
|
15
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
||
|
16
|
16
5813298 Foam-sound attn,cut |
5813298 |
US $45.69 |
||
|
17
|
17
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
18
|
18
7555919 Washer |
7555919 |
US $6.21 |
||
|
19
|
19
7081500 Latch-1/4 turn |
7081500 |
US $7.68 |
||
|
20
|
20
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
21
|
21
7518382 Bolt-5/16-18x2,25 flg tap/r-m |
7518382 |
US $2.92 |
||
|
22
|
22
5251419
Shield-box
|
5251419 |
— | ||
|
23
|
23
5413428 Grommet-latch |
5413428 |
US $1.98 |
||
|
24
|
24
7081195 Ring-tiedown |
7081195 |
US $9.15 |
||
|
25
|
25
5437822-070 Cover-storage,blk |
5437822-070 |
US $101.45 |
||
|
26
|
26
5813400 Seal-storage |
5813400 |
US $16.24 |
||
|
27
|
27
5813401 Grommet-storage |
5813401 |
US $0.79 |
||
|
28
|
28
5813380 Foil-rh panel |
5813380 |
US $3.94 |
||
|
29
|
29
7518375 Scr-1/4-20x1,50 tr/tx-m |
7518375 |
US $1.75 |
||
|
30
|
30
7670145 Nut-1/4-20,u-type(1,56-,190) |
7670145 |
US $45.90 |
