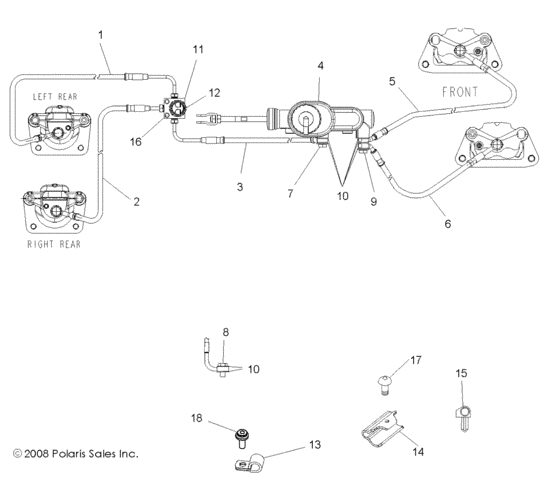

Brakes, brake lines and master cylinder (R09VH76FX) Diagram Polaris RANGER RZR "S" 800 EFI INTL
- Model code
- R09VH76FX
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1911448 Line-brake,rl,lt,int'l |
1911448 |
US $103.36 |
||
|
2
|
2
1911449 Line-brake,rr,lt,int'l |
1911449 |
US $103.36 |
||
|
3
|
3
1911447 Line-brake,master to rr,int'l |
1911447 |
US $83.72 |
||
|
4
|
4
1911234
Asm-master cylinder,uv
|
1911234 |
— | ||
|
5
|
5
1911446 Line-brake,fl,lt,int'l |
1911446 |
US $68.92 |
||
|
6
|
6
1911445 Line-brake,fr,lt,int'l |
1911445 |
US $157.48 |
||
|
7
|
7
1910958
Bolt-banjo, 10mm x 1,25-6g
|
1910958 |
— | ||
|
8
|
8
1910499 Bolt-banjo,10mmx1,00 |
1910499 |
US $7.68 |
||
|
9
|
9
1911194 Bolt-double banjo,m10x1,25 |
1911194 |
US $13.79 |
||
|
10
|
10
5413212 Seal-stat-o-3/8,70ep |
5413212 |
US $100.30 |
||
|
11
|
11
7052316 Fitting-cross,brake |
7052316 |
US $32.29 |
||
|
12
|
12
4110164 Switch,stoplight |
4110164 |
US $34.49 |
||
|
13
|
13
7081472 Clamp-hose,,375dia,vinyl coat |
7081472 |
US $1.77 |
||
|
14
|
14
5436594 Retainer-brake line,1" |
5436594 |
US $3.94 |
||
| replacement | |||||
|
14
|
14
5439192 Retainer-brake line,1" |
5439192 |
US $5.25 |
||
|
15
|
15
7670102 Clip |
7670102 |
US $5.25 |
||
|
16
|
16
7512025 Screw |
7512025 |
US $3.26 |
||
|
17
|
17
7512024 Screw |
7512024 |
US $2.45 |
||
|
18
|
18
7621323 Pop rivet(50) |
7621323 |
US $0.79 |
||
