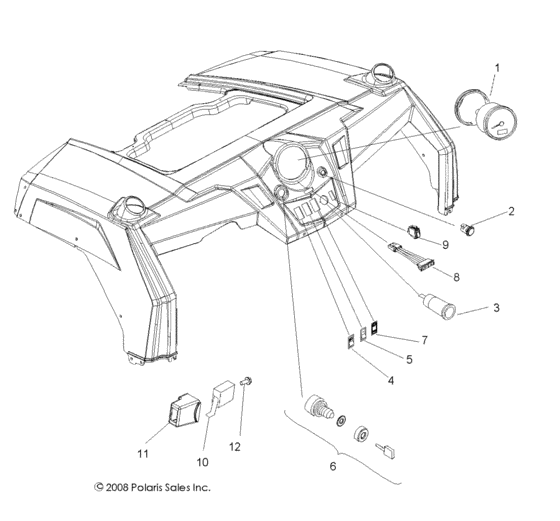

Electrical, dash instruments and controls (R09VH76FX) Diagram Polaris RANGER RZR "S" 800 EFI INTL
- Model code
- R09VH76FX
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3280516 Asm-cluster,110mm,w/fuel,int'l |
3280516 |
US $466.78 |
||
|
2
|
2
4011501 Switch-momentary, inst, |
4011501 |
US $35.84 |
||
|
3
|
3
4010638 Receptacle-pod mnt,12 volt |
4010638 |
US $15.26 |
||
|
4
|
4
4010525 Switch-headlight |
4010525 |
US $64.02 |
||
|
5
|
5
4011680 Switch-two pole |
4011680 |
US $52.47 |
||
|
6
|
6
4012165 Switch-key,3 pos,mt slv |
4012165 |
US $125.49 |
||
|
7
|
7
4011779 Switch-horn |
4011779 |
US $41.35 |
||
|
8
|
8
4011464 Indicator - turn |
4011464 |
US $25.43 |
||
|
9
|
9
4011318
Switch-hazard,spst
|
4011318 |
— | ||
|
10
|
10
4012461 Switch-turn signal |
4012461 |
US $88.64 |
||
|
11
|
11
5437976 Cover-switch,turn signal |
5437976 |
US $6.91 |
||
|
12
|
12
7512098 Screw (10) * |
7512098 |
US $1.89 |
