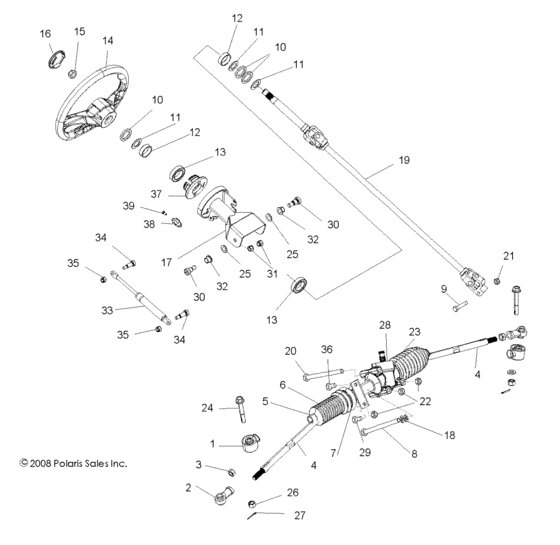

Steering, steering asm. (R09VH76FX) Diagram Polaris RANGER RZR "S" 800 EFI INTL
- Model code
- R09VH76FX
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411920
Boot, seal
|
5411920 |
— | ||
| replacement | |||||
|
1
|
1
5412929 Boot-seal,rod end,10mm |
5412929 |
US $11.81 |
||
|
2
|
2
7061054
Rod, end, lh
|
7061054 |
— | ||
| replacement | |||||
|
2
|
2
7061138 Rod-end,10mm,1/2-20lh,42 deg |
7061138 |
US $59.06 |
||
|
3
|
3
7547028
Nut,jam,lh(10)
|
7547028 |
— | ||
|
5
|
5
7080978 Clamp-boot,small |
7080978 |
US $3.94 |
||
|
6
|
6
5412013 Boot-passenger,side rack |
5412013 |
US $77.16 |
||
|
7
|
7
7080979 Clamp-boot,large |
7080979 |
US $9.19 |
||
|
8
|
8
7515382 Bolt(10) |
7515382 |
US $2.98 |
||
|
9
|
9
7518644
Scr-m10x1,50x35 hx/fl
|
7518644 |
— | ||
|
10
|
10
7556482 Washer-neopreme,28 od x 20 id |
7556482 |
US $1.49 |
||
|
11
|
11
7556483 Washer-30mm odx 21mm id x 1,5 |
7556483 |
US $1.49 |
||
|
12
|
12
5252796 Spacer-steering shaft |
5252796 |
US $2.98 |
||
|
13
|
13
3514646 Bearing-steering |
3514646 |
US $16.75 |
||
|
14
|
14
1823623 Wheel-steering, 14" |
1823623 |
US $127.05 |
||
|
15
|
15
7547188 Nut-m16x2-6g |
7547188 |
US $3.75 |
||
|
16
|
16
5436536 Cap-steering wheel |
5436536 |
US $25.43 |
||
|
17
|
17
1016891-458
Weld-pivot tube w/strg lock,bk
|
1016891-458 |
— | ||
|
18
|
18
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
19
|
19
1542610
Shaft, steering, upper/lower
|
1542610 |
— | ||
|
20
|
20
7518895 Scr-5/16-18x3,75 hxcp,gr5,lk-yLock Patch; |
7518895 |
US $2.28 |
||
|
21
|
21
7547685 Screw |
7547685 |
US $8.66 |
||
|
22
|
22
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
23
|
23
5412012 Boot-driver side,rack |
5412012 |
US $75.78 |
||
|
24
|
24
7517909 Bolt-m10x1,25x65,hx wash hd |
7517909 |
US $7.68 |
||
|
25
|
25
7555919 Washer |
7555919 |
US $6.21 |
||
|
26
|
26
7547177 Nut-m10x1,25-hx-lock-y |
7547177 |
US $3.75 |
||
|
27
|
27
7661203 Pin,cotter(10) |
7661203 |
US $26.30 |
||
|
28
|
28
1823443 Asm-gear box,steering,lt |
1823443 |
US $620.41 |
||
|
29
|
29
7512371 Bolt,5/16-18x3/4 |
7512371 |
US $2.45 |
||
|
30
|
30
7517607
Bolt,shoulder
|
7517607 |
— | ||
|
31
|
31
7542451
Nut, nylok(10) *
|
7542451 |
— | ||
|
32
|
32
5431107
Bushing, pedal pivot
|
5431107 |
— | ||
|
33
|
33
7043439
Asm., shock
|
7043439 |
— | ||
|
34
|
34
7518786 Bolt-shoulder,m8-16,m6x1,0-y |
7518786 |
US $7.88 |
||
|
35
|
35
7546703
Nut,nylok
|
7546703 |
— | ||
|
36
|
36
7512325 Bolt |
7512325 |
US $5.25 |
||
|
37
|
37
5632295-458 Collar-steering lock,matte'blk |
5632295-458 |
US $48.84 |
||
|
38
|
38
7081498 Lock-steering |
7081498 |
US $30.54 |
||
|
39
|
39
7518457 Scr-m5x,8x10 tx btn pin-in-hd |
7518457 |
US $1.49 |
||
