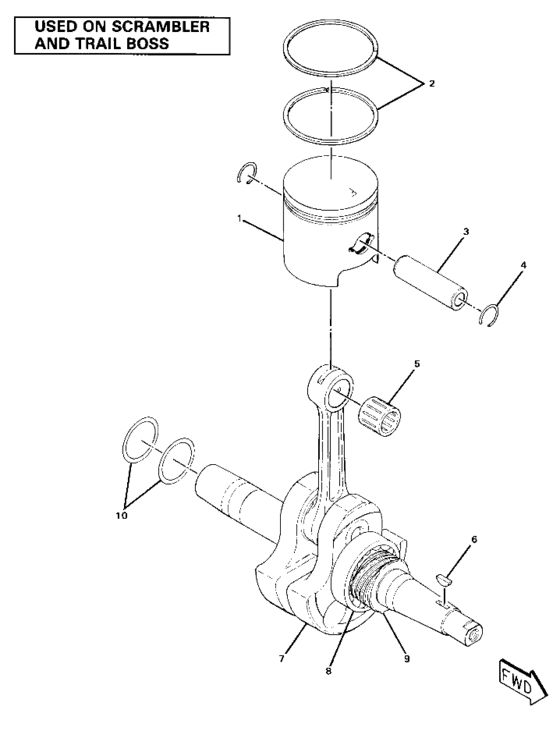

Crankshaft and piston assembly Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083627 Piston |
3083627 |
US $106.93 |
||
| replacement | |||||
|
1
|
1
3083942 Piston,standard* |
3083942 |
US $160 |
||
|
2
|
2
3083546 Piston,ring,standard * |
3083546 |
US $35.44 |
||
|
3
|
3
3083512 Pin, piston |
3083512 |
US $20.28 |
||
|
4
|
4
3083628
Clip, piston pin
10; |
3083628 |
— | ||
| replacement | |||||
|
4
|
4
3083839 Clip,piston pin,(10)10; |
3083839 |
US $69.80 |
||
|
5
|
5
3083626 Bearing, small end * |
3083626 |
US $29.54 |
||
|
6
|
6
3081543 Key woodruff |
3081543 |
US $9.15 |
||
|
7
|
7
3083625
Crankshaft
|
3083625 |
— | ||
| replacement | |||||
|
7
|
7
3083799
Crankshaft
|
3083799 |
— | ||
|
8
|
8
3083805 Bearing,ball * |
3083805 |
US $48.62 |
||
|
9
|
9
3083414 Gear, crankshaft |
3083414 |
US $89.62 |
||
| replacement | |||||
|
9
|
9
3083745
Gear, crankshaft
|
3083745 |
— | ||
|
10
|
10
3083630
Spacer #3
|
3083630 |
— | ||
|
10
|
10
3083629 Spacer #1 |
3083629 |
US $5.64 |
||
