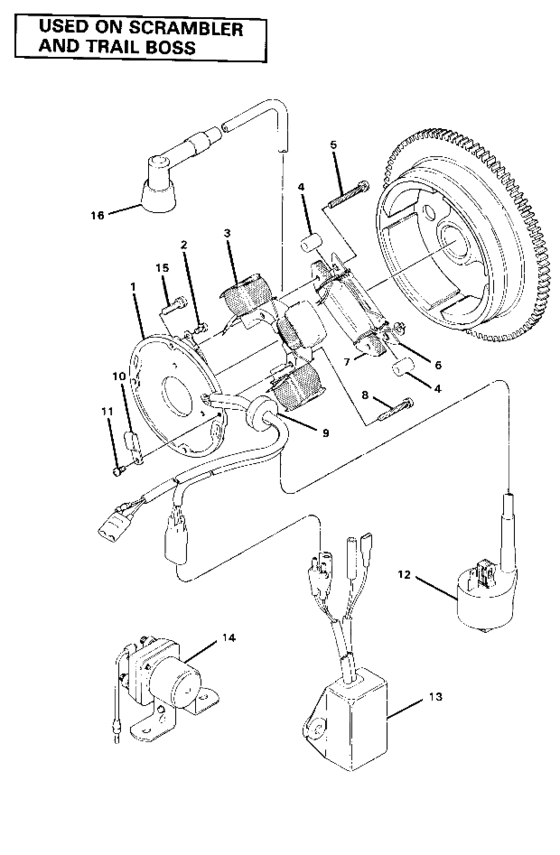

Magneto assembly Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083633
Plate asm.
|
3083633 |
— | ||
| replacement | |||||
|
1
|
1
3083751
Plate asm,
|
3083751 |
— | ||
|
2
|
2
3081256 Screw&washer asm(10)10; |
3081256 |
US $1.49 |
||
|
3
|
3
3083638
Stator 1
|
3083638 |
— | ||
|
4
|
4
3083639
Collar
|
3083639 |
— | ||
|
5
|
5
3081588
Screw & washer
|
3081588 |
— | ||
|
6
|
6
3083637
Coil, pulser
|
3083637 |
— | ||
|
7
|
7
3083636
Coil, exciting
|
3083636 |
— | ||
|
8
|
8
3083640
Screw&washer
|
3083640 |
— | ||
| replacement | |||||
|
8
|
8
3083736 Screw&washer asm,(10) |
3083736 |
US $1.89 |
||
|
9
|
9
3083641
Grommet
|
3083641 |
— | ||
| replacement | |||||
|
9
|
9
3083773
Grommet
|
3083773 |
— | ||
|
10
|
10
3081146 Clamp |
3081146 |
US $1.49 |
||
|
11
|
11
3081260 Asm,,screw&washer(10)10; |
3081260 |
US $1.89 |
||
|
12
|
12
3083642
Coil, ignition
|
3083642 |
— | ||
|
13
|
13
3083643
Cdi system
|
3083643 |
— | ||
| replacement | |||||
|
13
|
13
3083766
Cdi system
|
3083766 |
— | ||
|
14
|
14
3083211
Switch-magnetic
|
3083211 |
— | ||
| replacement | |||||
|
14
|
14
3085521
Switch, magnetic
|
3085521 |
— | ||
|
15
|
15
3081972
Screw & washer assy
10; |
3081972 |
— | ||
|
16
|
16
3083282
Cap-spark plug
|
3083282 |
— | ||
| replacement | |||||
|
16
|
16
4020129 Resistor plug cap (10) |
4020129 |
US $11.03 |
||
