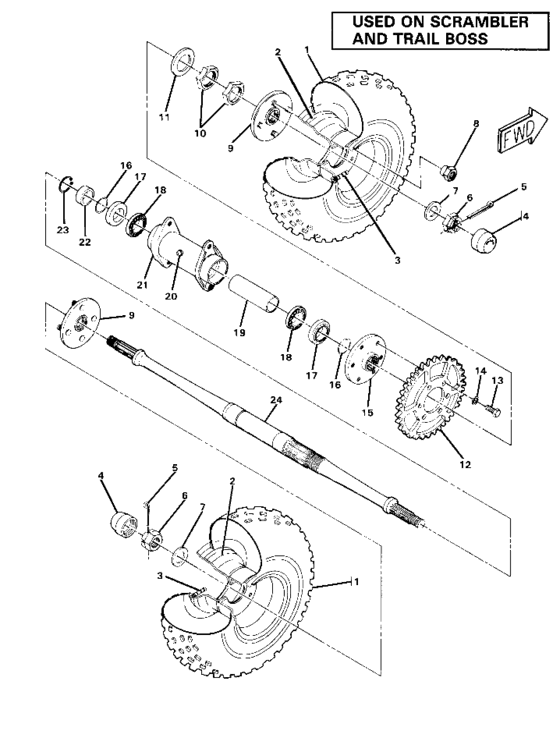

Rear wheel drive assembly Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5410406
Tire,r
No Longer Available; 22X11-10; |
5410406 |
— | ||
|
2
|
2
1520103
Rim, rear
|
1520103 |
— | ||
| replacement | |||||
|
2
|
2
1520114
Rim,rear, weld.
|
1520114 |
— | ||
|
3
|
3
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
4
|
4
5410404
Cover,dust,hub
|
5410404 |
— | ||
| replacement | |||||
|
4
|
4
5411164
Cover, dust, hub
|
5411164 |
— | ||
|
5
|
5
7661404 Pin, cotter10; |
7661404 |
US $5.25 |
||
|
6
|
6
7543005 Nut, castle10; |
7543005 |
US $9.84 |
||
|
7
|
7
7555745 Washer10; |
7555745 |
US $4.73 |
||
|
8
|
8
7542714 Nut(10)10; |
7542714 |
US $52.50 |
||
|
9
|
9
1520102
Hub, rear
|
1520102 |
— | ||
| replacement | |||||
|
9
|
9
1520102-067 Hub, rear |
1520102-067 |
US $124.06 |
||
|
10
|
10
7543801
Nut, jam
10; |
7543801 |
— | ||
| replacement | |||||
|
10
|
10
5020468 Nut, jam10; |
5020468 |
US $140.90 |
||
|
11
|
11
7555747
Washer
|
7555747 |
— | ||
|
12
|
12
3223009
Sprocket, 42t
|
3223009 |
— | ||
| replacement | |||||
|
12
|
12
3222070
Sprocket,42t,(atv) *
|
3222070 |
— | ||
|
13
|
13
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
14
|
14
7553001
Washer springlock
10; |
7553001 |
— | ||
| replacement | |||||
|
14
|
14
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
15
|
15
1011559
Hub,sprocket weld
|
1011559 |
— | ||
| replacement | |||||
|
15
|
15
1520170 Sprocket hub asm, |
1520170 |
US $146.51 |
||
|
16
|
16
5410415 O ring, 1 5/16(10) *10; |
5410415 |
US $2.28 |
||
|
17
|
17
3610013 Seal, rear axle |
3610013 |
US $30.10 |
||
|
18
|
18
3515501 Bearing, ball |
3515501 |
US $34.46 |
||
|
19
|
19
5010204
Tube,bearing spacer
|
5010204 |
— | ||
|
20
|
20
7080306 Fitting,lube,w/ball ck,(10)10; |
7080306 |
US $91.90 |
||
|
21
|
21
1011556
Housing,axle, weld
|
1011556 |
— | ||
| replacement | |||||
|
21
|
21
1011657-067
New Genuine Part
|
1011657-067 |
— | ||
|
22
|
22
5010206 Spacer,bearing |
5010206 |
US $32.29 |
||
|
23
|
23
7710405 Ring, snap(10)10; |
7710405 |
US $3.75 |
||
|
24
|
24
5020434
Axle, rear
|
5020434 |
— | ||
| replacement | |||||
|
24
|
24
5020469
Axle, rear
|
5020469 |
— | ||
