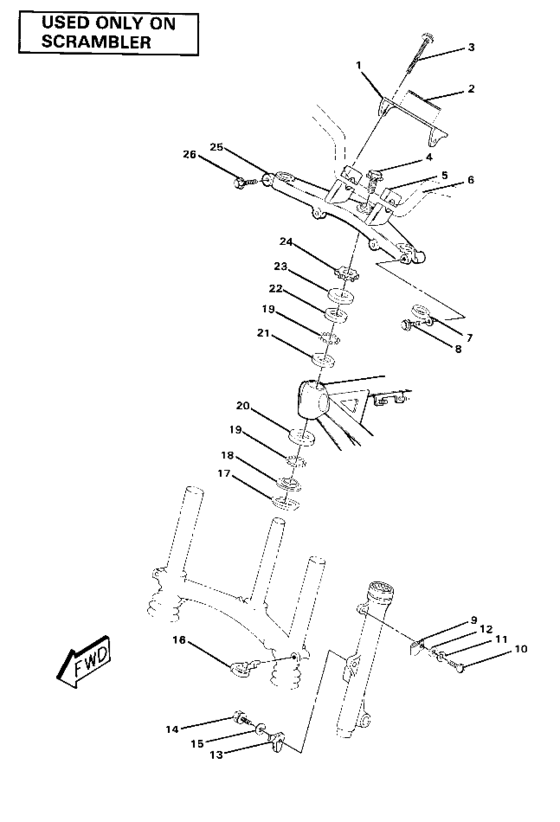

Steering assembly-scrambler Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5220487
Bracket
SCRAMBLER; |
5220487 |
— | ||
|
2
|
2
7072257
Decal
No Longer Available; |
7072257 |
— | ||
|
3
|
3
1844011
Bolt,flange
No Longer Available; |
1844011 |
— | ||
|
4
|
4
1844007
Bolt, washer based
No Longer Available; |
1844007 |
— | ||
|
5
|
5
1844010
Holder,upper handle
No Longer Available; |
1844010 |
— | ||
|
6
|
6
5224259
Bar, handle
3/W; |
5224259 |
— | ||
|
7
|
7
1844012
Holder, cable
No Longer Available; |
1844012 |
— | ||
|
8
|
8
1844009
Bolt, flange
No Longer Available; |
1844009 |
— | ||
|
9
|
9
1844016
Holder, cable 2
No Longer Available; |
1844016 |
— | ||
|
10
|
10
1844017
Screw,pan head
No Longer Available; |
1844017 |
— | ||
|
11
|
11
1844018
Washer, spring
No Longer Available; |
1844018 |
— | ||
|
12
|
12
1844019
Washer, plate
No Longer Available; |
1844019 |
— | ||
|
13
|
13
1844021
Holder, adjusting
No Longer Available; |
1844021 |
— | ||
|
14
|
14
1844022
Bolt
|
1844022 |
— | ||
| replacement | |||||
|
14
|
14
1844048
New Genuine Part
|
1844048 |
— | ||
|
15
|
15
1844023
Washer, spring
No Longer Available; |
1844023 |
— | ||
|
16
|
16
1844020
Guide, cable
No Longer Available; |
1844020 |
— | ||
|
17
|
17
1844001
Seal, steering
No Longer Available; |
1844001 |
— | ||
|
18
|
18
1844002
Race, ball 1
|
1844002 |
— | ||
|
19
|
19
1844004
Ball
|
1844004 |
— | ||
|
20
|
20
1844003
Race, ball 2
|
1844003 |
— | ||
|
21
|
21
1844046
Race, ball 2
|
1844046 |
— | ||
|
22
|
22
1844045
Race, ball 1
|
1844045 |
— | ||
|
23
|
23
1844005
Cover,ball race 1
|
1844005 |
— | ||
|
24
|
24
1844006
Nut
No Longer Available; |
1844006 |
— | ||
|
25
|
25
1844008
Crown, handle
No Longer Available; |
1844008 |
— | ||
|
26
|
26
1844009
Bolt, flange
No Longer Available; |
1844009 |
— | ||
