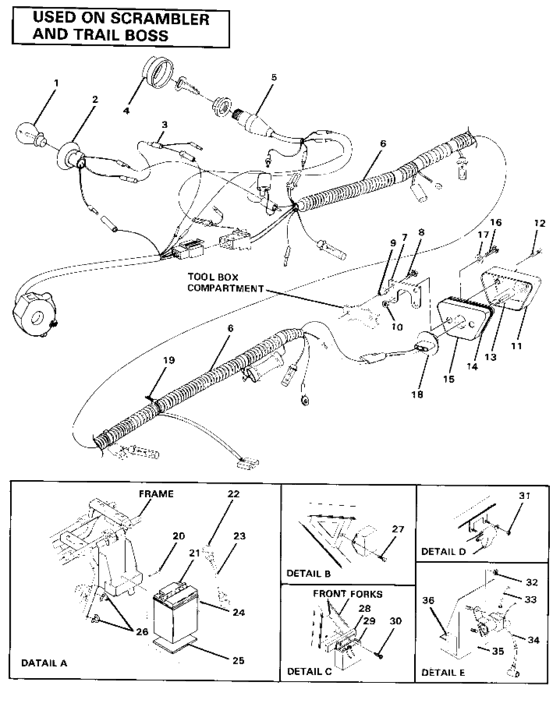

Wire harness Diagram Polaris SCRAMBLER
- Model code
- W857027
- Year
- 1985
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4032007
Bulb, headlight
|
4032007 |
— | ||
|
2
|
2
4032011
Socket cord asm.
|
4032011 |
— | ||
|
3
|
3
2460248
Harness,hi-beam indic.
|
2460248 |
— | ||
|
4
|
4
5410433
Cover, ignition key
No Longer Available; |
5410433 |
— | ||
|
5
|
5
4110065
Switch,ignition,modified
|
4110065 |
— | ||
|
6
|
6
2460236
Harness,main wire *cables include boots.
|
2460236 |
— | ||
|
7
|
7
5210985
Bracket,taillight
|
5210985 |
— | ||
|
8
|
8
7512279 Screw(10) *10; |
7512279 |
US $0.79 |
||
|
9
|
9
7542104
Nut rubber well
10; |
7542104 |
— | ||
| replacement | |||||
|
9
|
9
7541923 Nut-well(10) *10; |
7541923 |
US $7.68 |
||
|
10
|
10
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
11
|
11
4032030
Lens, taillight
|
4032030 |
— | ||
| replacement | |||||
|
11
|
11
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
12
|
12
4032029 Screw |
4032029 |
US $2.98 |
||
|
13
|
13
4030040 Bulb,taillight(10)10; |
4030040 |
US $7.51 |
||
|
14
|
14
4032031
Gasket,taillight
|
4032031 |
— | ||
|
15
|
15
4032032
Backing,taillight
|
4032032 |
— | ||
|
16
|
16
7511930 Screw(10)10; |
7511930 |
US $0.79 |
||
|
17
|
17
7558203 Washer10; |
7558203 |
US $1.77 |
||
|
18
|
18
4032033
Socket,taillight asm.
|
4032033 |
— | ||
|
19
|
19
7080272 Strap, blk |
7080272 |
US $3.64 |
||
|
20
|
20
4010066
Cable,battery/engine
|
4010066 |
— | ||
|
21
|
21
4140006 Battery |
4140006 |
US $275.60 |
||
|
22
|
22
7010032 Hook-battery strap(10)10; |
7010032 |
US $26.30 |
||
|
23
|
23
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
24
|
24
5521133
Fuel line3/16id-2ft.
|
5521133 |
— | ||
| replacement | |||||
|
24
|
24
8450037-600 Fuel line,3/16 id(600 cm,) |
8450037-600 |
US $79.35 |
||
|
25
|
25
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
26
|
26
7080303
Clamp, poly
|
7080303 |
— | ||
|
27
|
27
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
28
|
28
5210650
Heat sink
|
5210650 |
— | ||
|
29
|
29
4060077
Regulator/rectifier
|
4060077 |
— | ||
|
30
|
30
7522015
Screw
|
7522015 |
— | ||
|
31
|
31
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
32
|
32
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
33
|
33
4010065
Cable,battery/solenoid
|
4010065 |
— | ||
|
34
|
34
4010064
Cable,solenoid/starter
|
4010064 |
— | ||
|
35
|
35
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
36
|
36
7072245
Decal,battery box *cables include boots
No Longer Available; |
7072245 |
— | ||
