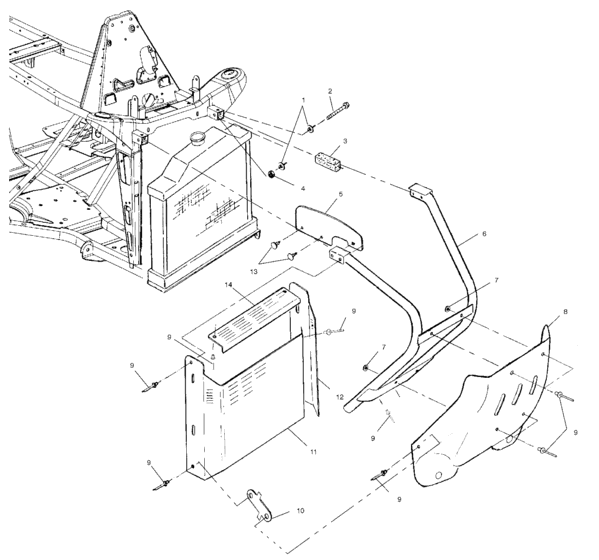

Front bumper and shields (A02BG38CA) Diagram Polaris SCRAMBLER 400 4X4
- Model code
- A02BG38CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
2
|
2
7512329 Bolt |
7512329 |
US $4.59 |
||
|
3
|
3
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
4
|
4
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
5
|
5
5850140
Shield,lh,deflector
|
5850140 |
— | ||
|
5
|
5
5850141 Shield,rh,deflector |
5850141 |
US $12.20 |
||
|
6
|
6
1040725-067
Bumper,front,blk
|
1040725-067 |
— | ||
|
7
|
7
7555827 Washer |
7555827 |
US $3.26 |
||
|
8
|
8
5432378-216
Plate, skid, bumper, screaming yellow
|
5432378-216 |
— | ||
|
9
|
9
7661121 Rivet-1/4"multigrip,,08-,35,b ( |
7661121 |
US $1.89 |
||
|
10
|
10
5242694-067
Bracket, radiator shield
|
5242694-067 |
— | ||
|
11
|
11
5245343-067
Shield, radiator, side, rh
|
5245343-067 |
— | ||
|
12
|
12
5245342-067 Shield-radiator side,lh,st,blk |
5245342-067 |
US $46.87 |
||
|
13
|
13
7670088 Clip,plastic dart,nylon |
7670088 |
US $2.45 |
||
|
14
|
14
5245344-067
Shield-upper radiator,st,blk
|
5245344-067 |
— |
