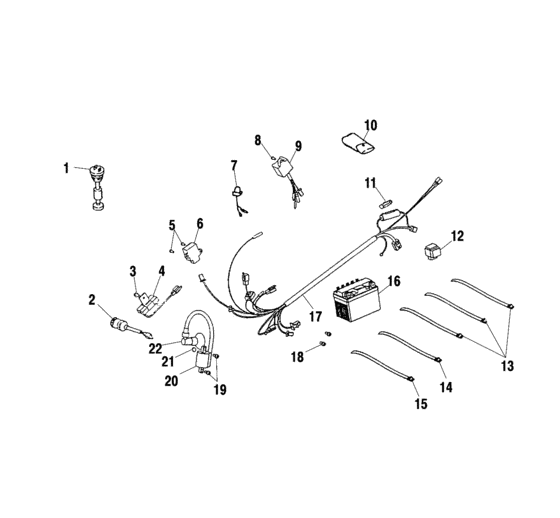

Electrical parts (A02EA05CA) Diagram Polaris SCRAMBLER 50
- Model code
- A02EA05CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450558
Asm., oil level gauge
|
0450558 |
— | ||
|
2
|
2
0450549
Clip, main switch
|
0450549 |
— | ||
|
3
|
3
0450701 Bolt-hex washer(10) * |
0450701 |
US $1.89 |
||
|
4
|
4
0450554
Resistor,asm, *
|
0450554 |
— | ||
|
5
|
5
0450057 Bolt-pan,phillip |
0450057 |
US $0.79 |
||
|
6
|
6
0450553
Rectifier/regulator
|
0450553 |
— | ||
|
7
|
7
0450557
Lamp,warning,oil 34908-131-000
|
0450557 |
— | ||
|
8
|
8
0450309
Bolt
|
0450309 |
— | ||
|
9
|
9
0450975
Cdi box asm
|
0450975 |
— | ||
|
10
|
10
0450563 Tool kit w/bag |
0450563 |
US $19.30 |
||
|
11
|
11
0450842
Fuse
|
0450842 |
— | ||
|
12
|
12
0450555 Relay,starter,asm, |
0450555 |
US $107.52 |
||
|
13
|
13
0450559 Strap(10) |
0450559 |
US $0.79 |
||
|
14
|
14
0450721 Strap(10)* |
0450721 |
US $2.28 |
||
|
15
|
15
0450742 Strap(10) |
0450742 |
US $1.89 |
||
|
16
|
16
0450930
Battery
|
0450930 |
— | ||
|
17
|
17
0450939
Harness,main wire
|
0450939 |
— | ||
|
18
|
18
0450888 Bolt/nut,battery(10)* |
0450888 |
US $1.89 |
||
|
19
|
19
0450556 Bolt-hex (10) |
0450556 |
US $1.89 |
||
|
20
|
20
0450753 Ignition coil asm,Incl. 22; |
0450753 |
US $61.06 |
||
|
21
|
21
0450890 Washer-star(10) |
0450890 |
US $0.79 |
||
|
22
|
22
0451162 Asm,cover-spark plug (cap&base) |
0451162 |
US $26.41 |
