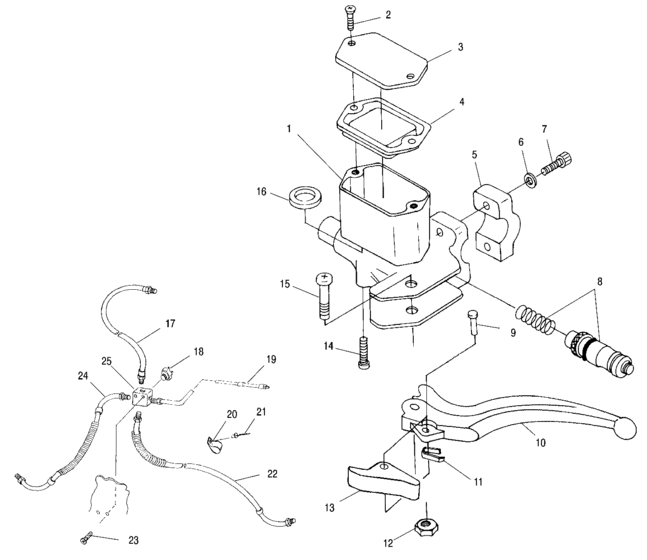

Controls (MASTER CYLINDER/BRAKE LINE) Diagram Polaris SCRAMBLER 500 2X4
- Model code
- A01BA50AA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2050073 Master cylinderIncl. 1-16; |
2050073 |
US $306.22 |
||
|
1
|
1
2200809 Kit,master cyl reservoirIncl. 2,3,4,16; |
2200809 |
US $64.02 |
||
|
2
|
2
1930797 Bolt(2),res.cap,mcyl2; |
1930797 |
US $9.85 |
||
|
3
|
3
1930796 Cap,reservoir |
1930796 |
US $24.43 |
||
|
4
|
4
1930795 Diaphragm,res. |
1930795 |
US $39.38 |
||
|
5
|
5
2200808 Kit,m.cyl.clampIncl. 6,7; |
2200808 |
US $39.39 |
||
|
6
|
6
1930791
Desc not_available
|
1930791 |
— | ||
|
7
|
7
1930789
Desc not_available
|
1930789 |
— | ||
|
8
|
8
1930799 Piston,mcyl,3/4" |
1930799 |
US $93.52 |
||
|
9
|
9
1930804
Rivet
|
1930804 |
— | ||
|
10
|
10
2201034 Kit,leverIncl. 9, 11,13; |
2201034 |
US $61.06 |
||
|
12
|
12
1930806
Nut,handle pivot
|
1930806 |
— | ||
|
13
|
13
2201090 Kit,lever,parkbrakeIncl. 9,11; |
2201090 |
US $35.67 |
||
|
14
|
14
1930792 Bolt,reservoir (2) |
1930792 |
US $14.09 |
||
|
15
|
15
1930805
Bolt
|
1930805 |
— | ||
|
17
|
17
1910336
Line,brake,upper w/boot,ftgs
|
1910336 |
— | ||
|
18
|
18
4110164 Switch,stoplight |
4110164 |
US $34.49 |
||
|
19
|
19
1930873
Line,rear handbrake
|
1930873 |
— | ||
|
20
|
20
7080539 Clamp,nylon,cable10; |
7080539 |
US $2.45 |
||
|
21
|
21
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
22
|
22
1930809
Line,brake,lh,fr,w/ftg,
|
1930809 |
— | ||
|
23
|
23
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
24
|
24
1930812
Line,brake,rh,fr,w/ftg,
|
1930812 |
— | ||
|
25
|
25
7052237
Fitting-cross,atv
|
7052237 |
— |
