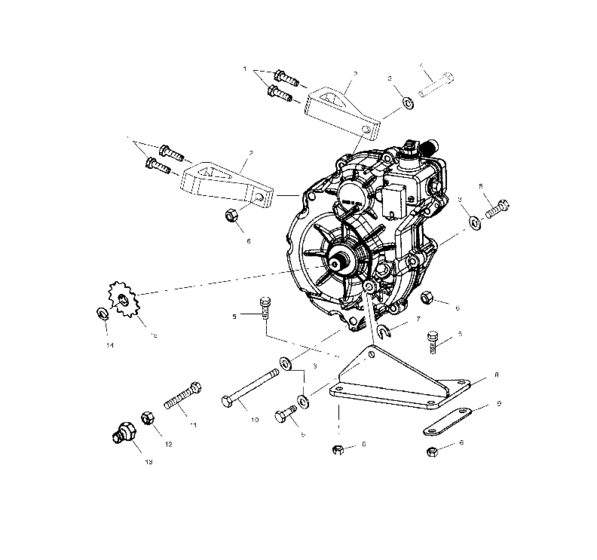

Gearcase mounting (A02BA50AA/AB) Diagram Polaris SCRAMBLER 500 2X4
- Model code
- A02BA50AB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517632 Screw |
7517632 |
US $4.24 |
||
|
2
|
2
5132046 Mount-transmission,rear,mach |
5132046 |
US $38.61 |
||
|
3
|
3
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
4
|
4
7517642 Screw |
7517642 |
US $6.69 |
||
|
5
|
5
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
6
|
6
7547089 Nut-3/8-16 flg lock-y |
7547089 |
US $2.45 |
||
|
7
|
7
5210764 Spacer-,02010;.020; |
5210764 |
US $6.14 |
||
|
7
|
7
5211065 Shim,,010.010; |
5211065 |
US $7.09 |
||
|
7
|
7
5211517 Shim,(,030).030;.030; |
5211517 |
US $8.84 |
||
|
8
|
8
1012886-067 Mount,transmission,blk |
1012886-067 |
US $32.52 |
||
|
9
|
9
5243296-067 Spacer-transmission mnt,blk |
5243296-067 |
US $7.30 |
||
|
10
|
10
7517646 Screw |
7517646 |
US $6.30 |
||
|
11
|
11
7517631 Screw (10) |
7517631 |
US $3.75 |
||
|
12
|
12
7542440 Nut10; |
7542440 |
US $1.89 |
||
|
14
|
14
7710434 Ring,snap(10)10; |
7710434 |
US $19.80 |
||
|
15
|
15
3221044 Spkt, 12t * |
3221044 |
US $44.71 |
