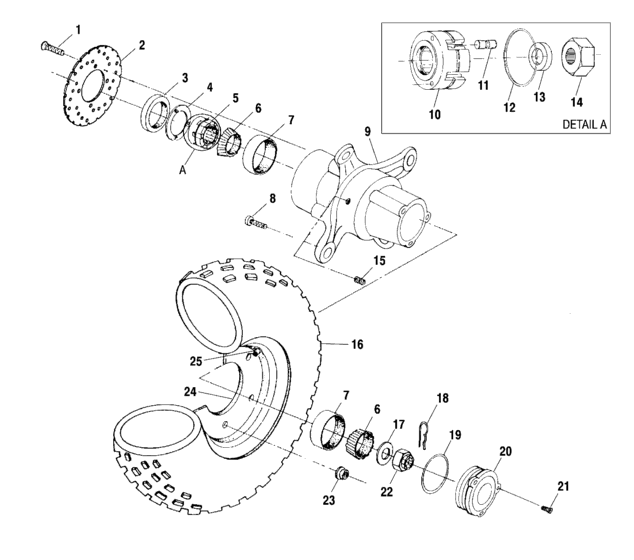

Front wheel (A01BG50AA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512325 Bolt10; |
7512325 |
US $5.25 |
||
|
2
|
2
5243675
Disc, brake
|
5243675 |
— | ||
|
3
|
3
3610019 Seal, fr, hub |
3610019 |
US $35.12 |
||
|
4
|
4
5211148 Plate, armature |
5211148 |
US $14.28 |
||
|
5
|
5
1520281 Clutch,fr hub e/mSplined Drive Shaft; |
1520281 |
US $412.20 |
||
|
6
|
6
3554506 Brg,taper,roll,cone |
3554506 |
US $33.50 |
||
|
7
|
7
3554507 Brg,taper,roll cup |
3554507 |
US $33.50 |
||
|
8
|
8
7515523 Stud10; |
7515523 |
US $4.73 |
||
|
9
|
9
2202595
Kit-wheel hub assmebly w/cap
Incl. 3,7,8; |
2202595 |
— | ||
|
10
|
10
3250028 Cage, roll |
3250028 |
US $212.73 |
||
|
11
|
11
3250010 Roll |
3250010 |
US $29.07 |
||
|
12
|
12
3250032 Spring,garter |
3250032 |
US $20.28 |
||
|
13
|
13
1321814 Spacer |
1321814 |
US $12.11 |
||
|
14
|
14
3250030 Cam |
3250030 |
US $177.24 |
||
|
15
|
15
7052045 Plug,magnetic drain |
7052045 |
US $7.89 |
||
|
16
|
16
5411264
Tire, titan
23x7-10; |
5411264 |
— | ||
|
17
|
17
7556004 Washer |
7556004 |
US $5.22 |
||
|
18
|
18
7661401 Pin,cotter(10)10; |
7661401 |
US $3.94 |
||
|
19
|
19
5410470 O ring (10) |
5410470 |
US $52.50 |
||
|
20
|
20
5432611 Cap,hub,3-lobe,awd |
5432611 |
US $13.20 |
||
|
21
|
21
7512027 Screw(10) *10; |
7512027 |
US $19.60 |
||
|
22
|
22
7542810 Nut, slotted10; |
7542810 |
US $3.94 |
||
|
23
|
23
7542459 Nut, flanged(10)10; |
7542459 |
US $65.60 |
||
|
24
|
24
1520175-117
Rim,frt,(silver)
SILVER; |
1520175-117 |
— | ||
|
25
|
25
1525017 Valve, rim |
1525017 |
US $6.56 |
