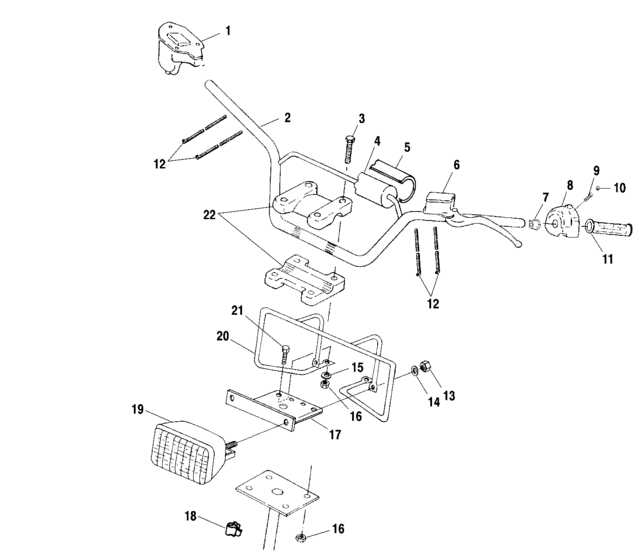

Handlebar/headlight (A01BG50AA) Diagram Polaris SCRAMBLER 500 4X4
- Model code
- A01BG50AB
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
1820934-067
Handlebar,blk
|
1820934-067 |
— | ||
|
3
|
3
7515189 Screw(10) *10; |
7515189 |
US $1.89 |
||
|
4
|
4
5521181
Pad, handlebar
|
5521181 |
— | ||
|
5
|
5
2682454 Cover pad,handlebar |
2682454 |
US $48.84 |
||
|
7
|
7
5433903 Spacer-switch,lh,99 |
5433903 |
US $10.61 |
||
|
8
|
8
4010262 Switch-handlebar,h/l/o,rev/or |
4010262 |
US $177.26 |
||
|
9
|
9
7517625 Screw,set |
7517625 |
US $2.98 |
||
|
10
|
10
5432952 Plug,hole10; |
5432952 |
US $3.15 |
||
|
11
|
11
5433834-070 Grip-hndlbar,7/8 id,black |
5433834-070 |
US $16.24 |
||
|
12
|
12
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
13
|
13
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
14
|
14
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
15
|
15
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
16
|
16
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
17
|
17
5241973-067
Brkt,h/l,blk
|
5241973-067 |
— | ||
|
18
|
18
7080631 Clip,cable retain,(10) *10; |
7080631 |
US $9.38 |
||
|
19
|
19
2431016
H/l asm,35/35w,bott,mt,
|
2431016 |
— | ||
|
19
|
19
4030061 Bulb,h/l,30/30 w, |
4030061 |
US $38.38 |
||
|
20
|
20
1040579-067
Guard, headlight
|
1040579-067 |
— | ||
|
21
|
21
7512240 Bolt10; |
7512240 |
US $2.45 |
||
|
22
|
22
5630616-067
Block,h'bar retainer,blk
|
5630616-067 |
— |
