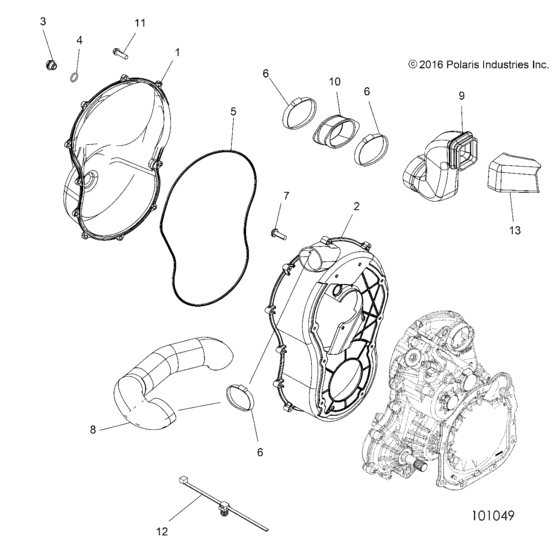

Body, Clutch Cover (A17SVA85A2 (101049)) Diagram Polaris SCRAMBLER 850
- Model code
- A17SVA85A2
- Year
- 2017
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2633919 Asm-cover,clutch,outerINCL. OUTER COVER,3,4 |
2633919 |
US $141.80 |
||
|
2
|
2
5438127 Cover-clutch inner |
5438127 |
US $185.85 |
||
|
3
|
3
5434264 Plug-Drain |
5434264 |
US $3.15 |
||
|
4
|
4
5410542
O-ring
|
5410542 |
— | ||
| replacement | |||||
|
4
|
4
5411432 O ring (10) |
5411432 |
US $39.70 |
||
|
5
|
5
5521802 Seal-cover,clutch |
5521802 |
US $45.17 |
||
| replacement | |||||
|
5
|
5
5526454 Seal-cover,clutch |
5526454 |
US $45.17 |
||
|
6
|
6
7081279 Clamp-band,narrow 70-90mm |
7081279 |
US $3.94 |
||
|
7
|
7
7520472 SCR-M6X1.0X14,PN/TX |
7520472 |
US $0.79 |
||
|
8
|
8
5415566 DUCT-OUTLET,CLUTCH |
5415566 |
US $95.31 |
||
|
9
|
9
5436820 Duct-air inlet,clutch |
5436820 |
US $49.23 |
||
|
10
|
10
5413177 Boot-clutch,inlet |
5413177 |
US $39.38 |
||
|
11
|
11
7519849 Scr-#14x1-1/4,hi/lo/taper-y |
7519849 |
US $0.79 |
||
|
12
|
12
7082264 CLIP-DUCT,OUTLET |
7082264 |
US $6.69 |
||
|
13
|
13
5413516 Boot-inlet,duct |
5413516 |
US $10.83 |
||
