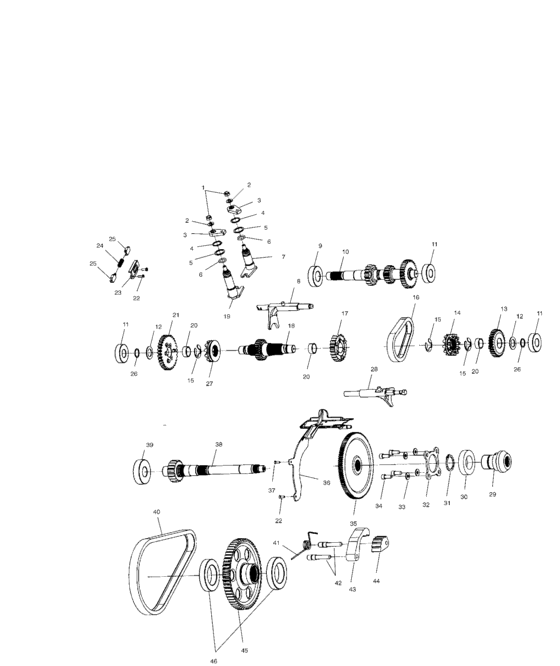

Gearcase (A02CH42AA; Internal Components) Diagram Polaris SPORTSMAN 400
- Model code
- A02CH42AA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233055
Nut
|
3233055 |
— | ||
|
2
|
2
3233054 Washer |
3233054 |
US $3.26 |
||
|
3
|
3
3233153 Bellcrank |
3233153 |
US $19.30 |
||
|
4
|
4
3233045 Ring,retaining |
3233045 |
US $3.26 |
||
|
5
|
5
3233040 Washer |
3233040 |
US $7.68 |
||
|
6
|
6
3233548 O-ring |
3233548 |
US $14.58 |
||
|
7
|
7
3233774
Shaft-shift,12-point,spring
|
3233774 |
— | ||
|
8
|
8
3233775 Shift fork,low,sub-asm |
3233775 |
US $183.17 |
||
|
9
|
9
3233019 Bearing |
3233019 |
US $39.38 |
||
|
10
|
10
3233571
Shaft,input 15t hcr,hlr(dsl)
|
3233571 |
— | ||
|
11
|
11
3233018 Bearing |
3233018 |
US $29.54 |
||
|
12
|
12
3233176 Washer |
3233176 |
US $7.68 |
||
|
13
|
13
3233744 Gear,30t,12pt |
3233744 |
US $221.59 |
||
|
14
|
14
3233743
Dog,engage,high/rev 12pt
|
3233743 |
— | ||
|
15
|
15
3233720 Ring,ret-ring,external |
3233720 |
US $7.68 |
||
|
16
|
16
3233036 Chain,silent,34p |
3233036 |
US $65.99 |
||
|
17
|
17
3233719 Sprocket,24t |
3233719 |
US $112.28 |
||
|
18
|
18
3233742
Shaft,reverse,29t
|
3233742 |
— | ||
|
19
|
19
3233661
Shaft-shift
|
3233661 |
— | ||
|
20
|
20
3233718 Bearing,ndl,split cage |
3233718 |
US $38.41 |
||
|
21
|
21
3233745
Gear,36t,12pt
|
3233745 |
— | ||
|
22
|
22
3233747 Screw-tapping,w/lock washer |
3233747 |
US $2.45 |
||
|
23
|
23
3233309 Bracket,interlock |
3233309 |
US $25.43 |
||
|
24
|
24
3233189
Spring
|
3233189 |
— | ||
|
25
|
25
3233308 Pin,interlock |
3233308 |
US $20.69 |
||
|
26
|
26
3233177 Ring,retaining |
3233177 |
US $3.75 |
||
|
27
|
27
3233732 Dog,engagement,low |
3233732 |
US $173.32 |
||
|
28
|
28
3233664
Fork,shift,h/r
|
3233664 |
— | ||
|
29
|
29
3233365
Gear,16t,spiral bevel,snorkel
|
3233365 |
— | ||
|
30
|
30
3233265 Bearing, ball |
3233265 |
US $45.29 |
||
|
31
|
31
3233364 Ring,retaining |
3233364 |
US $3.75 |
||
|
32
|
32
3233263 Cover-bearing |
3233263 |
US $12.20 |
||
|
33
|
33
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
34
|
34
3233262 Screw |
3233262 |
US $2.28 |
||
|
35
|
35
3233360 Gear,o/p,100t,hcr |
3233360 |
US $231.44 |
||
|
36
|
36
3233669
Deflector-oil
|
3233669 |
— | ||
|
37
|
37
3233282
Screw
|
3233282 |
— | ||
|
38
|
38
3233715
Shaft-center drive
|
3233715 |
— | ||
|
39
|
39
3233020 Bearing |
3233020 |
US $54.18 |
||
|
40
|
40
3233430
Chain,silent
|
3233430 |
— | ||
|
41
|
41
3233431 Spring,torsion |
3233431 |
US $20.28 |
||
|
42
|
42
3233432 Pin,dowel |
3233432 |
US $5.22 |
||
|
43
|
43
3233433 Shoe,chain tensioner |
3233433 |
US $26.78 |
||
|
44
|
44
3233434 Cam,chain tensioner |
3233434 |
US $10.34 |
||
|
45
|
45
3233670
Spocket-60t,36t sp
|
3233670 |
— | ||
|
46
|
46
3233268 Bearing, ball |
3233268 |
US $63.98 |
