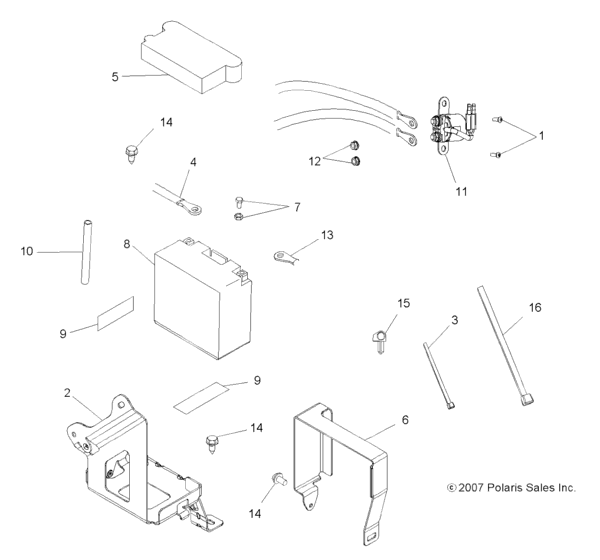

Electrical, battery (A08LH46AQ/AX/AZ) Diagram Polaris SPORTSMAN 400 HO 4X4
- Model code
- A08LH46AQ/AX/AZ
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512024 Screw |
7512024 |
US $2.45 |
||
|
2
|
2
5251289-329 Brkt-battery,e-coat |
5251289-329 |
US $56.14 |
||
|
3
|
3
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
4
|
4
4012133 Cable-battery,black,19" |
4012133 |
US $18.32 |
||
|
5
|
5
2633661 Asm-batt cover/foam |
2633661 |
US $13.20 |
||
|
6
|
6
5251295 Brkt-battery strap |
5251295 |
US $79.17 |
||
|
7
|
7
2200361 Kit-battery bolt (short) |
2200361 |
US $1.77 |
||
|
8
|
8
4010905
Battery
|
4010905 |
— | ||
|
9
|
9
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
10
|
10
5433156 Tube,battery vent,88 cm |
5433156 |
US $2.07 |
||
|
11
|
11
4012013 Solenoid-starter |
4012013 |
US $56.14 |
||
|
12
|
12
7547270
Nut-hxflghd,m6,serrated
|
7547270 |
— | ||
|
13
|
13
4011147 Cable-16,5" bat/solenoid,red |
4011147 |
US $35.46 |
||
|
14
|
14
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
|
15
|
15
7670102 Clip |
7670102 |
US $5.25 |
||
|
16
|
16
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
