	Description	OEM Part #	Price
1	1 1911075 Caliper-brake,dh4p,3/8 mount	1911075	US $303.29
2	2 5410988 Seal If built before 9/25/06;	5410988	—
2	2 5413212 Seal-stat-o-3/8,70ep If built after 9/25/06;	5413212	US $100.30
3	3 1910760 Line-brake,rear,caliper	1910760	US $88.64
4	4 1910499 Bolt-banjo,10mmx1,00	1910499	US $7.68
5	5 2202708 Kit-line,break,rear,m/c Incl. 2,4,5;	2202708	US $93.56
6	6 7670126 Clip-retaining,dual ,250" line	7670126	US $2.98
7	7 7517756 Screw,10-24x5/8 (10)	7517756	US $1.89
8	8 7080138 Cable tie (10)	7080138	US $26.30
9	9 7512024 Screw	7512024	US $2.45
10	10 7080499 Clamp, cable	7080499	US $3.94
11	11 7080003 Clamp,hose(10)	7080003	US $0.79
12	12 7542153 Nut,nylok,flanged	7542153	US $2.63
13	13 1930854 Reservoir asm,r,brake	1930854	US $27.58
14	14 7512247 Bolt(10) *	7512247	US $0.79
15	15 1910315 Hose,reservoir,1/4id,22in,	1910315	—
16	16 1911113 Asm-master cylinder,brake,rear If built after 7/24/06;	1911113	US $187.11
16	16 1910790 Asm., master cylinder, brake, rear If built before 7/24/06;	1910790	—
	replacement
16	16 1911113 Asm-master cylinder,brake,rear If built before 7/24/06;	1911113	US $187.11
17	17 7041750 Spring-torsion,brake	7041750	US $9.85
18	18 7555919 Washer	7555919	US $6.21
19	19 5433189 Bushing-pedal pivot	5433189	US $6.56
20	20 1911047-067 Weld-brake,pedal,400/500sp,blk	1911047-067	US $65.99
21	21 7661401 Pin,cotter(10)	7661401	US $3.94
22	22 7512457 Bolt	7512457	US $3.26
23	23 7552603 Washer,spring lock(10)	7552603	US $26.30
24	24 7556188 Washer-fl,390x,750x,065-y	7556188	US $3.26

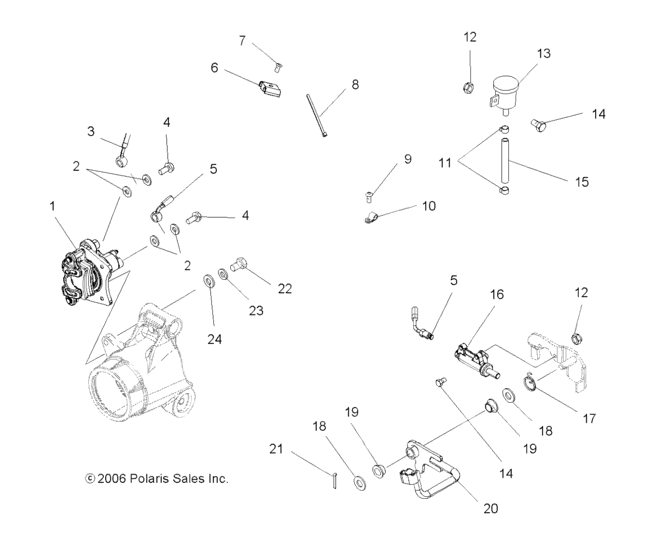

Brake, footand foot pedal (A07MH46AA/AZ) Diagram Polaris SPORTSMAN 450 General 1545106-151189
