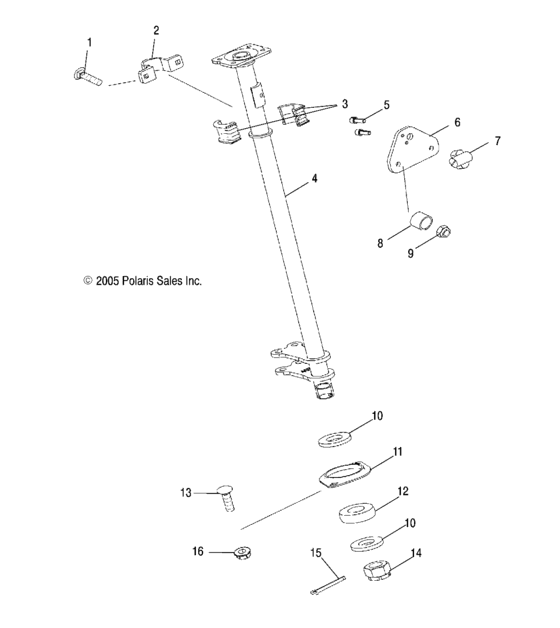

Steering post (A06MH50FC) Diagram Polaris SPORTSMAN 500 EFI INTL
- Model code
- A06MH50FC
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515383 Bolt,carriage |
7515383 |
US $3.26 |
||
|
2
|
2
5134869 Brkt-upper |
5134869 |
US $21.49 |
||
|
3
|
3
5433866 Bushing-upper,1 in |
5433866 |
US $9.19 |
||
|
4
|
4
1014892-067 Post steering w/lock,blk |
1014892-067 |
US $183.17 |
||
|
5
|
5
7518457 Scr-m5x,8x10 tx btn pin-in-hd |
7518457 |
US $1.49 |
||
|
6
|
6
5248556-067 Plate-steering lock,blk |
5248556-067 |
US $31.43 |
||
|
7
|
7
7081224
Lock-steering
|
7081224 |
— | ||
|
8
|
8
5134868 Guard-nut,tamper resistant |
5134868 |
US $4.25 |
||
|
9
|
9
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
10
|
10
7556162 Bushing-1x1 1/2x ,145 |
7556162 |
US $3.26 |
||
|
11
|
11
5222393 Flangette (2-bolt) |
5222393 |
US $15.86 |
||
|
12
|
12
3514352
Bearing-1xm52xm15,sph
|
3514352 |
— | ||
|
13
|
13
7517428 Bolt |
7517428 |
US $3.26 |
||
|
14
|
14
7547158 Nut-slotted hex,1-14-hx |
7547158 |
US $8.66 |
||
|
15
|
15
7661633 Pin, cotter |
7661633 |
US $6.56 |
||
|
16
|
16
7542343 Nut,flange |
7542343 |
US $6.56 |
