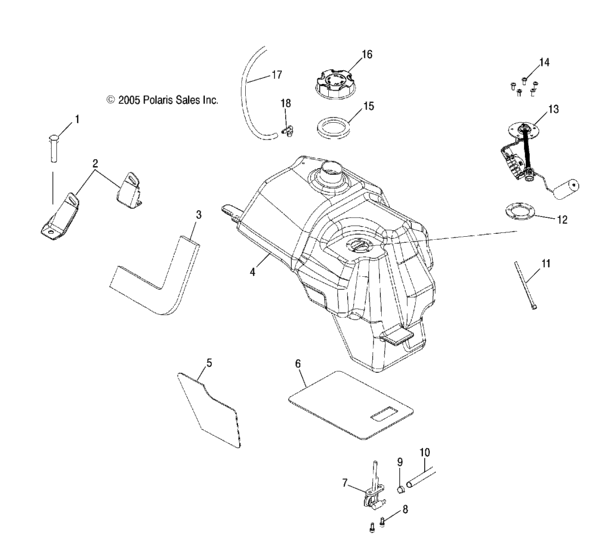

Fuel system (A06MH50FB) Diagram Polaris SPORTSMAN 500 HO INTL
- Model code
- A06MH50FB
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515179 Screw |
7515179 |
US $2.98 |
||
|
2
|
2
5247184 Brkt-fuel cover mt lh,pltd |
5247184 |
US $17.10 |
||
|
2
|
2
5247185 Brkt-fuel cover mt rh,pltd |
5247185 |
US $17.10 |
||
|
3
|
3
5812265 Seal-foam,12 in |
5812265 |
US $16.75 |
||
|
4
|
4
2520556 Asm-fuel tank w/senderIncl. 5-7,12-14; |
2520556 |
US $753.38 |
||
|
5
|
5
5812004
Foil
If built before 10/5/05; |
5812004 |
— | ||
|
5
|
5
5813044 Foil-fuel tankIf built after 10/5/05; |
5813044 |
US $14.28 |
||
|
6
|
6
5812005
Foil
If built before 10/5/05; |
5812005 |
— | ||
|
6
|
6
5813045 Foil-fuel tank,9,5x7,125If built after 10/5/05; |
5813045 |
US $14.28 |
||
|
7
|
7
7052331 Valve-fuel,on/off/reserve |
7052331 |
US $28.58 |
||
|
8
|
8
7515136 Screw(10) * |
7515136 |
US $1.89 |
||
|
9
|
9
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
10
|
10
8450103
Line, fuel
|
8450103 |
— | ||
|
11
|
11
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
12
|
12
5810858 Gasket |
5810858 |
US $61.34 |
||
|
13
|
13
2410554
Sender-fuel,level
|
2410554 |
— | ||
|
14
|
14
7518257 Scr-#10-32x1/2 |
7518257 |
US $2.92 |
||
|
15
|
15
5812123 Gasket |
5812123 |
US $10.03 |
||
|
16
|
16
5433687 Cap,gas tank |
5433687 |
US $24.08 |
||
|
17
|
17
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
18
|
18
5431053 Vent, tank |
5431053 |
US $10.15 |
