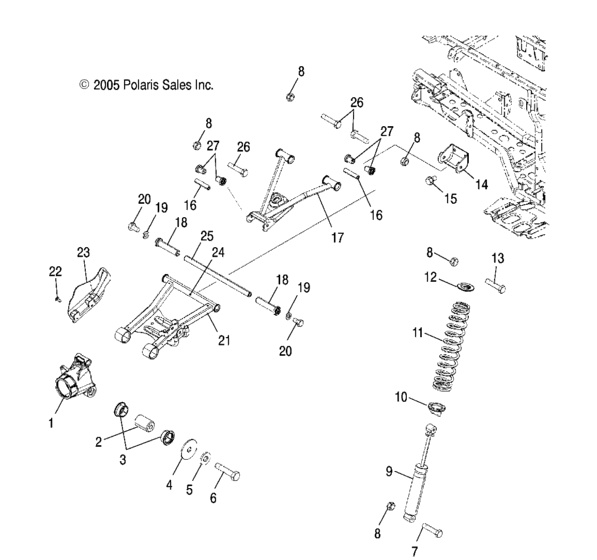

Suspension, rear (A06MH50FB) Diagram Polaris SPORTSMAN 500 HO INTL
- Model code
- A06MH50FB
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5134206 Carrier-bearing,wheel(mach) |
5134206 |
US $153.62 |
||
|
2
|
2
5631142
Bushing-brng,carrier,pm,7/16
|
5631142 |
— | ||
|
3
|
3
5434550
Bushing-control,lower,blk
|
5434550 |
— | ||
| replacement | |||||
|
3
|
3
5438902 Bushing-control,lower,blk |
5438902 |
US $98.50 |
||
|
4
|
4
7555740 Washer(10) * |
7555740 |
US $39.40 |
||
|
5
|
5
7552614 Washer, lock |
7552614 |
US $2.45 |
||
|
6
|
6
7517873 Bolt-7/16-14 unc-2ax2.75" gr5 |
7517873 |
US $52.50 |
||
|
7
|
7
7515415 Screw(10) |
7515415 |
US $1.49 |
||
|
8
|
8
7542439 Nut,nylok(10) |
7542439 |
US $1.96 |
||
|
9
|
9
7043100 Shock-rr,irs |
7043100 |
US $113.68 |
||
|
10
|
10
5631014 Cam,spring adjust,1-3/8If built before 7/29/05; |
5631014 |
US $16.24 |
||
|
10
|
10
5630551 Cam,adjust,springIf built after 7/29/05; |
5630551 |
US $16.24 |
||
|
11
|
11
7043091-067 Spring-comp,rear 100#,15lg,blk |
7043091-067 |
US $100.73 |
||
|
12
|
12
5630885
Retainer, spring
|
5630885 |
— | ||
|
13
|
13
7515433 Screw(10) |
7515433 |
US $26.30 |
||
| replacement | |||||
|
13
|
13
7517583 Scr-3/8-24x2 hx/cp gr5-y-sp |
7517583 |
US $3.57 |
||
|
14
|
14
5247345 Brkt-a-arm pivot pltd |
5247345 |
US $12.20 |
||
|
15
|
15
7518364 Bolt-3/8-16x7/8 hex flange gr5 |
7518364 |
US $1.49 |
||
|
16
|
16
5020826 Shaft,a-arm,short |
5020826 |
US $13.79 |
||
|
17
|
17
1014320-067 Weld-upper control arm,lh,blk |
1014320-067 |
US $115.80 |
||
|
17
|
17
1014321-067 Weld-upper control arm,rh,blk |
1014321-067 |
US $115.80 |
||
|
18
|
18
5434551
Bushing-a-arm,long,blk
|
5434551 |
— | ||
| replacement | |||||
|
18
|
18
5436973 Bushing-a-arm,long,102,36mm |
5436973 |
US $10.83 |
||
|
19
|
19
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
20
|
20
7512492 Screw(10) |
7512492 |
US $39.40 |
||
|
21
|
21
1015117-067
Control,lower,lh,blk
|
1015117-067 |
— | ||
|
21
|
21
1015118-067
Control,lower,rh,blk
|
1015118-067 |
— | ||
|
22
|
22
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
23
|
23
5435008-070 Shield-cv,rear,basic,blk,lh |
5435008-070 |
US $19.30 |
||
|
23
|
23
5435009-070 Shield-cv,rear,basic,blk,rh |
5435009-070 |
US $19.30 |
||
|
24
|
24
7080433 Fitting,lubrication,threaded(10 |
7080433 |
US $5.25 |
||
|
25
|
25
5133806 Shaft-a-arm |
5133806 |
US $47.23 |
||
|
26
|
26
7515472 Bolt |
7515472 |
US $6.56 |
||
|
27
|
27
5434548 Bushing-a-arm-short,blk |
5434548 |
US $65.60 |
||
| replacement | |||||
|
27
|
27
5439270 Bushing-a-arm-short,blk |
5439270 |
US $3.94 |
||
