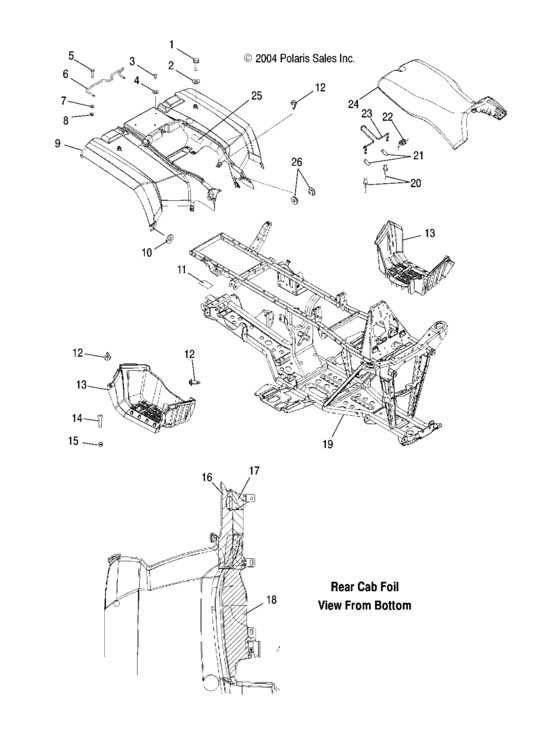

Rear cab and seat (A05MH50AB/AC/AG/AH/AL/AT/FB) Diagram Polaris SPORTSMAN 500 HO/INTL
- Model code
- A05MH50AB
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512095 Screw |
7512095 |
US $6.04 |
||
|
2
|
2
7555798 Washer |
7555798 |
US $6.69 |
||
|
3
|
3
7512026
Screw
|
7512026 |
— | ||
|
4
|
4
7556034 Washer |
7556034 |
US $3.75 |
||
|
5
|
5
7511930 Screw(10) |
7511930 |
US $0.79 |
||
|
6
|
6
5246076
Retainer-seat latch
|
5246076 |
— | ||
|
7
|
7
7555792 Washer |
7555792 |
US $2.45 |
||
|
8
|
8
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
9
|
9
5435363-293
Cab, rear, indy red
AB;FB; |
5435363-293 |
— | ||
|
9
|
9
5435664-455 Cab-rr,nbu sub camoAC; AT; |
5435664-455 |
US $827.19 |
||
|
9
|
9
5435363-341
Cab, rear, sonic blue
AG; |
5435363-341 |
— | ||
|
9
|
9
5436235-177 Cab-rr,blkmetAL; |
5436235-177 |
US $827.19 |
||
|
9
|
9
5435363-400
Cab, rear, camo green metallic
AH; |
5435363-400 |
— | ||
|
10
|
10
7558403 Washer,wroughtAC; AT; |
7558403 |
US $2.45 |
||
|
11
|
11
7170911
Decal-hitch,1225 lbs,
|
7170911 |
— | ||
|
12
|
12
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
13
|
13
5435354-070
Footwell, black, lh
|
5435354-070 |
— | ||
|
13
|
13
5435355-070
Footwell, black, rh
|
5435355-070 |
— | ||
|
14
|
14
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
15
|
15
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
16
|
16
5812703
Foil, front, top
|
5812703 |
— | ||
|
17
|
17
5812702
Foil, front, bottom
|
5812702 |
— | ||
|
18
|
18
5812701
Foil
|
5812701 |
— | ||
|
19
|
19
1014536-067
Frame, main, black
|
1014536-067 |
— | ||
|
20
|
20
7621403 Blind rivet(50) |
7621403 |
US $0.79 |
||
|
21
|
21
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
22
|
22
7041370 Spring, latch |
7041370 |
US $8.17 |
||
|
23
|
23
1040387 Latch,seat |
1040387 |
US $37.63 |
||
|
24
|
24
2683661-070
Seat asm,blk
AC; |
2683661-070 |
— | ||
|
24
|
24
2683433-070
Seat asm,blk
|
2683433-070 |
— | ||
|
24
|
24
2683434-070
Covering, seat, black
|
2683434-070 |
— | ||
|
25
|
25
7079902
Decal,carb/filter info
|
7079902 |
— | ||
|
26
|
26
5412623 Grommet-rubber mount |
5412623 |
US $2.28 |
