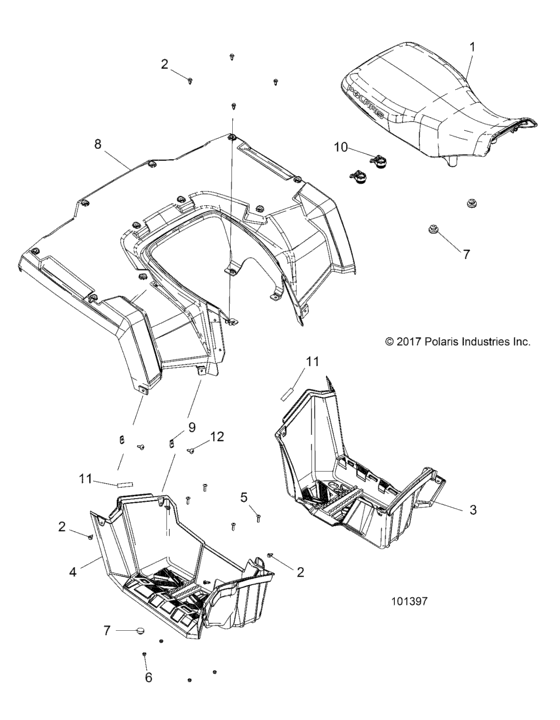

Body, Rear Cab, Seat And Footwells (A18SEA57F1/SEE57F1/7 (101397)) Diagram Polaris SPORTSMAN 570 EFI EPS EU
- Model code
- A18SEA57F1/SEE57F1/7
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2688340-070 Asm-Seat,nylon,blkINCL. 7,9 |
2688340-070 |
US $228.45 |
||
|
1
|
1
2686537
Asm-Cover,seat,white Decal
|
2686537 |
— | ||
|
2
|
2
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
3
|
3
5450523-070 Footwell-lh,blk |
5450523-070 |
US $233.42 |
||
|
4
|
4
5450524-070 Footwell-rh,blk |
5450524-070 |
US $233.42 |
||
|
5
|
5
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
6
|
6
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
7
|
7
5412067 Bumper-rubber |
5412067 |
US $2.98 |
||
|
8
|
8
2635180-498 Asm-cab rr,svc,sagebrush greenSEE57F1 |
2635180-498 |
US $523.58 |
||
|
8
|
8
2635180-293 Asm-cab rr,svc,indy redSEE57F7 |
2635180-293 |
US $472.68 |
||
|
9
|
9
7670145 Nut-1/4-20,u-type(1,56-,190) |
7670145 |
US $45.90 |
||
|
10
|
10
5415539 GROMMET-SEAT LATCH |
5415539 |
US $3.27 |
||
|
11
|
11
8360153 TRIM-EDGE,FOOTWELL,EU |
8360153 |
US $1.91 |
||
|
12
|
12
7518280 Scr-1/4-20x,75,tr/tx-m |
7518280 |
US $3.94 |
