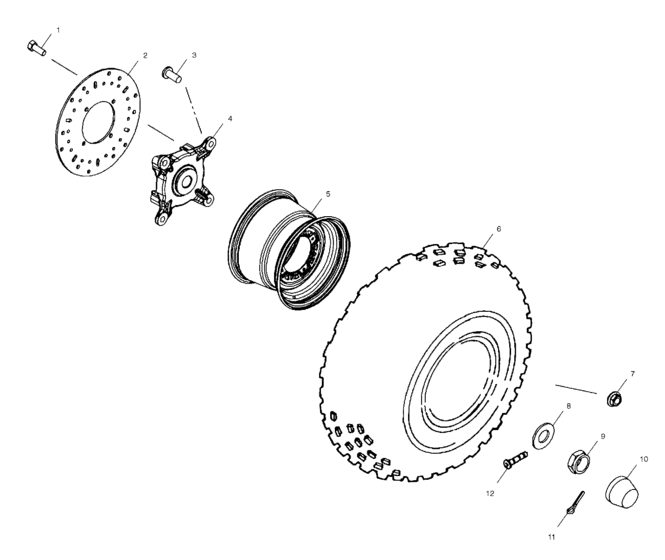

Front wheel (A02CH68AA/AB/AC/CA/CB) Diagram Polaris SPORTSMAN 700
- Model code
- A02CH68AA/AB/AC/CA/CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512325 Bolt |
7512325 |
US $5.25 |
||
|
2
|
2
5244314 Disc,brake,front |
5244314 |
US $88.60 |
||
|
3
|
3
7518030
Stud
|
7518030 |
— | ||
|
4
|
4
5131935
Hub, wheel, 4wd
If built before 5/01/02; |
5131935 |
— | ||
|
4
|
4
5133360
Hub-wheel,awd,mach
If built after 5/01/02; |
5133360 |
— | ||
|
5
|
5
1520519
Rim, front, chrome
|
1520519 |
— | ||
|
6
|
6
5411952
Tire, front, 25x8-12
25x8-12; |
5411952 |
— | ||
|
7
|
7
7547211
Nut, flange
|
7547211 |
— | ||
|
8
|
8
7556004 Washer |
7556004 |
US $5.22 |
||
|
9
|
9
7542810 Nut, slotted |
7542810 |
US $3.94 |
||
|
10
|
10
5411164
Cover, dust, hub
|
5411164 |
— | ||
|
11
|
11
7661401 Pin,cotter(10) |
7661401 |
US $3.94 |
||
|
12
|
12
1525017 Valve, rim |
1525017 |
US $6.56 |
