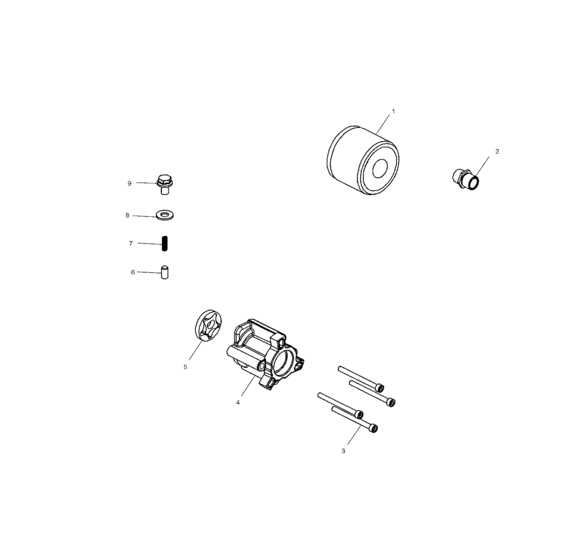

Oil pump (A02CH68AA/AB/AC/CA/CB) Diagram Polaris SPORTSMAN 700
- Model code
- A02CH68AA/AB/AC/CA/CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2540006
Filter, oil
|
2540006 |
— | ||
|
2
|
2
2540023
Nipple, oil filter
|
2540023 |
— | ||
|
3
|
3
7517807 Scr-m6x1,0x70mm soc/cap-y/d |
7517807 |
US $2.98 |
||
|
4
|
4
5131426
Housing,oilpump
|
5131426 |
— | ||
|
5
|
5
1202079 Gerotor-asm |
1202079 |
US $76.27 |
||
|
6
|
6
7661127 Pin-dowell,m8x16,din 6325 |
7661127 |
US $9.15 |
||
|
7
|
7
7041563 Spring-pressure relief |
7041563 |
US $15.26 |
||
|
8
|
8
7556005 Washer,10,5x22x2,al |
7556005 |
US $3.94 |
||
|
9
|
9
7516824 Scr,m10x1,5x12 hx/fl |
7516824 |
US $32.29 |
