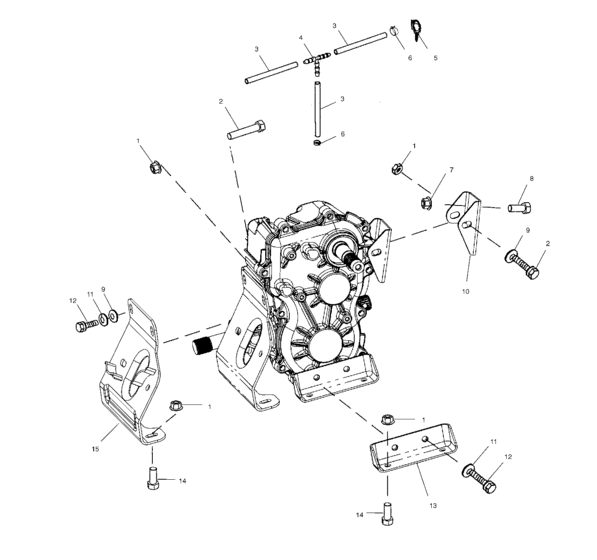

Transmission mounting (A02CH68AA/AB/AC/CA/CB) Diagram Polaris SPORTSMAN 700
- Model code
- A02CH68AA/AB/AC/CA/CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547108 Nut |
7547108 |
US $2.98 |
||
|
2
|
2
7515417 Screw |
7515417 |
US $3.94 |
||
|
3
|
3
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
4
|
4
7052075 Fitting, tee |
7052075 |
US $7.68 |
||
|
5
|
5
7080756 Clip,snap-in |
7080756 |
US $3.26 |
||
|
6
|
6
7080307 Clamp,hose(10) |
7080307 |
US $0.79 |
||
|
7
|
7
7542321 Nut,flange(10) |
7542321 |
US $1.89 |
||
|
8
|
8
7515398 Screw |
7515398 |
US $3.75 |
||
|
9
|
9
7555976 Washer,flat |
7555976 |
US $3.26 |
||
|
10
|
10
5244599-067 Brkt,mnt,tranny,rear,blk |
5244599-067 |
US $11.24 |
||
|
11
|
11
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
12
|
12
7515522 Bolt |
7515522 |
US $3.26 |
||
|
13
|
13
5245524-067 Mount-transmission,blk |
5245524-067 |
US $13.42 |
||
|
14
|
14
7517289 Screw |
7517289 |
US $3.94 |
||
|
15
|
15
1013134-067 Mount,engine,rear,blk |
1013134-067 |
US $138.64 |
