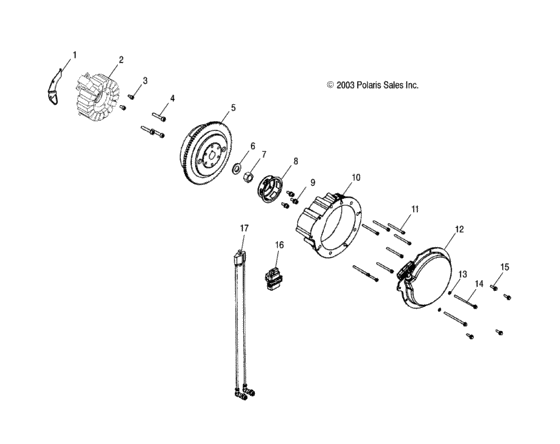

Engine, magneto and recoil (A07MH68MA/ME) Diagram Polaris SPORTSMAN 700 MV
- Model code
- A07MH68MA/ME
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5245364 Stator-bracket,wire-hold-down |
5245364 |
US $47.25 |
||
|
2
|
2
4011103 Asm-stator,kokusan |
4011103 |
US $641.08 |
||
|
3
|
3
7517847 Scr-m5x0,8x10 soc/cp-d |
7517847 |
US $3.94 |
||
|
4
|
4
7517714 Screw |
7517714 |
US $8.66 |
||
|
5
|
5
4010899 Asm-flywheel,ignition kok |
4010899 |
US $627.27 |
||
|
6
|
6
7555907 Washer |
7555907 |
US $3.94 |
||
|
7
|
7
7547213 Nut-m14x1,50,hex-y |
7547213 |
US $2.45 |
||
|
8
|
8
3021474 Pulley-starting,recoil atv twn |
3021474 |
US $9.75 |
||
|
9
|
9
7516730 Asm,,screw and washer |
7516730 |
US $8.66 |
||
|
10
|
10
1202647 Asm-housing,recoil,lower,atv |
1202647 |
US $244.23 |
||
|
11
|
11
7517807 Scr-m6x1,0x70mm soc/cap-y/d |
7517807 |
US $2.98 |
||
|
12
|
12
1202648
Asm-recoil,housing,atv
|
1202648 |
— | ||
|
13
|
13
7555998 Washer,flat(10) * |
7555998 |
US $0.79 |
||
|
14
|
14
7518756
Scr-m6x1x95 hx/fl
|
7518756 |
— | ||
|
15
|
15
7516730 Asm,,screw and washer |
7516730 |
US $8.66 |
||
|
16
|
16
4011017 Controller-ignition |
4011017 |
US $324.98 |
||
|
17
|
17
4010898 Coil-ignition kok |
4010898 |
US $142.80 |
