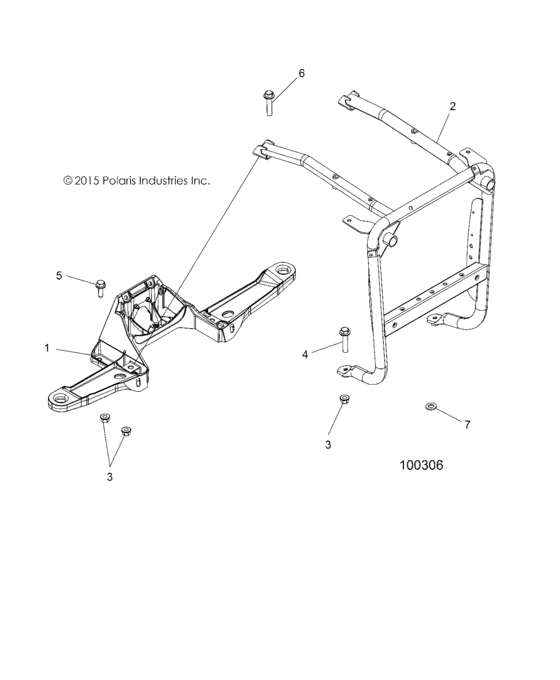

Body, Front Rack Support (A16SXN85A3) Diagram Polaris SPORTSMAN 850 HIGH LIFTER
- Model code
- A16SXN85A3
- Year
- 2016
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5632354 Bulkhead-cast |
5632354 |
US $119.09 |
||
|
2
|
2
1021182-329 WELD-FRONT RACK SUPPORT,BLK |
1021182-329 |
US $231.60 |
||
|
3
|
3
7547317
Nut-m8x1,25,hxflg,nylon ins
|
7547317 |
— | ||
|
4
|
4
7518816 Hex Flange Bolt-m8x1,25x65 |
7518816 |
US $5.25 |
||
|
5
|
5
7518450 Bolt-m8x20-1,25 hx hd flg |
7518450 |
US $3.15 |
||
|
6
|
6
7517281 Screw |
7517281 |
US $5.22 |
||
|
7
|
7
7556318 Spacer-,26x,50x,31 |
7556318 |
US $1 |
