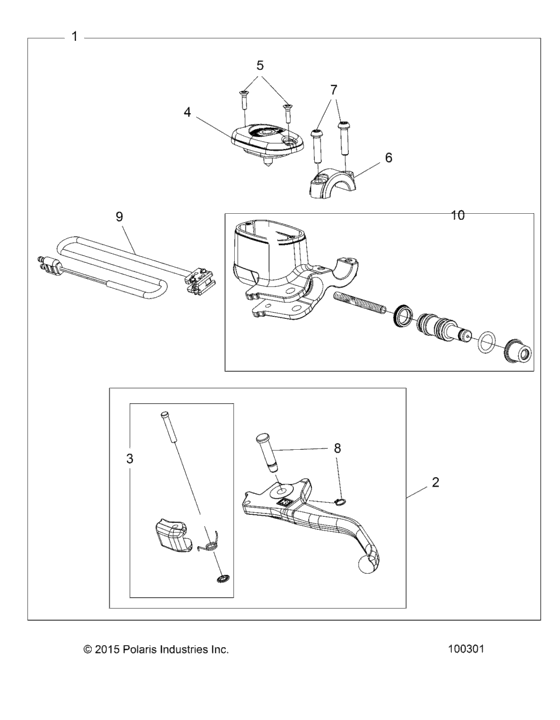

Brakes, Front Brake Lever And Master Cylinder (A16SXN85A3) Diagram Polaris SPORTSMAN 850 HIGH LIFTER
- Model code
- A16SXN85A3
- Year
- 2016
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2206061 ASM-M/CYL,3/4,SWITCH,SVCINCL. ALL |
2206061 |
US $246.19 |
||
|
2
|
2
2203053 Kit-lever & park lever,hbINCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS |
2203053 |
US $100.73 |
||
|
3
|
3
2203054 Kit-park lever,hbINCL. PIN, LEVER, SPRING, RING |
2203054 |
US $28.58 |
||
|
4
|
4
2203055 Kit-m/c cover,hbINCL. COVER W/SEAL |
2203055 |
US $95.31 |
||
|
5
|
5
2203056 Kit-m/c cover screws,hbINCL. 2 SCREWS |
2203056 |
US $20.69 |
||
|
6
|
6
2203093 Kit-clamp,hb,11/16"INCL. CLAMP ONLY |
2203093 |
US $48.76 |
||
|
7
|
7
2203058 Kit-screws,clamp,hbINCL. 2 SCREWS |
2203058 |
US $29.07 |
||
|
8
|
8
2203059 Kit-pivot pin,hbINCL. BRAKE LEVER PIN, SNAP RING |
2203059 |
US $36.24 |
||
|
9
|
9
2202794 Kit-brake light swtch 98-16756 |
2202794 |
US $64.02 |
||
|
10
|
10
2205642 PISTON-SUB ASM,RESERVOIR BODYINCL. PISTON SUB ASM. WITH RES. BODY |
2205642 |
US $207.97 |
