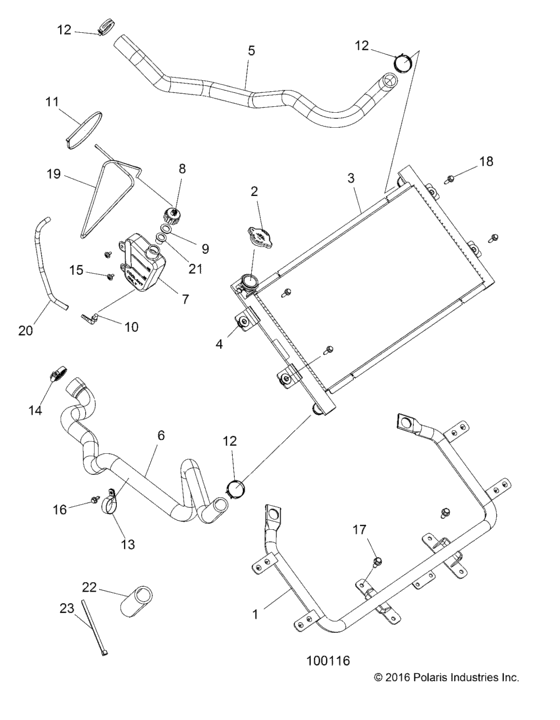

Engine, Cooling System, Radiator (A16SXN85A3) Diagram Polaris SPORTSMAN 850 HIGH LIFTER
- Model code
- A16SXN85A3
- Year
- 2016
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1021184 WELD-RADIATOR SUPPORT |
1021184 |
US $96.51 |
||
|
2
|
2
1240466 Cap-pressure 13 psi |
1240466 |
US $61.23 |
||
|
3
|
3
1240922 ASM-RADIATOR,FLAT MNTINCL. CAP, GROMMET AND INSERT |
1240922 |
US $709.99 |
||
|
4
|
4
5413509 Asm-grommet and insert |
5413509 |
US $20.28 |
||
|
5
|
5
5415399 HOSE-COOLANT,ENGINE IN |
5415399 |
US $35.67 |
||
|
6
|
6
5415831 HOSE-COOLANT,ENGINE OUTFROM 2/4/16 |
5415831 |
US $79.17 |
||
|
6
|
6
5415400
HOSE-COOLANT,ENGINE OUT
TO 2/3/16 |
5415400 |
— | ||
|
7
|
7
5436936 Tank-surge |
5436936 |
US $79.31 |
||
|
8
|
8
5437635 Cap-overflow bottle,w/fitting |
5437635 |
US $2.66 |
||
|
9
|
9
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
10
|
10
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
11
|
11
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
12
|
12
7080844 Clamp,springband 35/12,blk |
7080844 |
US $8.66 |
||
|
13
|
13
7080851
Clamp, hose
|
7080851 |
— | ||
| replacement | |||||
|
13
|
13
7080908 Clamp,hose 1,375,vnl ecoated |
7080908 |
US $6.69 |
||
|
14
|
14
7081192 Clamp-hose(worm dr)25-40mm |
7081192 |
US $6.69 |
||
|
15
|
15
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
16
|
16
7518513 Bolt-m6x1,0x15,hxflg,tap/r-od |
7518513 |
US $2.45 |
||
|
17
|
17
7518555 Polaris Hex Flange Bolt |
7518555 |
US $3.94 |
||
|
18
|
18
7519342 Scr-tfhfl-m6x1.0x25,zod |
7519342 |
US $1.77 |
||
|
19
|
19
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
20
|
20
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
21
|
21
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
22
|
22
5521287-08
Conduit,flex,1,250id
TO 2/3/16 |
5521287-08 |
— | ||
|
23
|
23
7080924
Cable tie,evap
TO 2/3/16 |
7080924 |
— | ||
