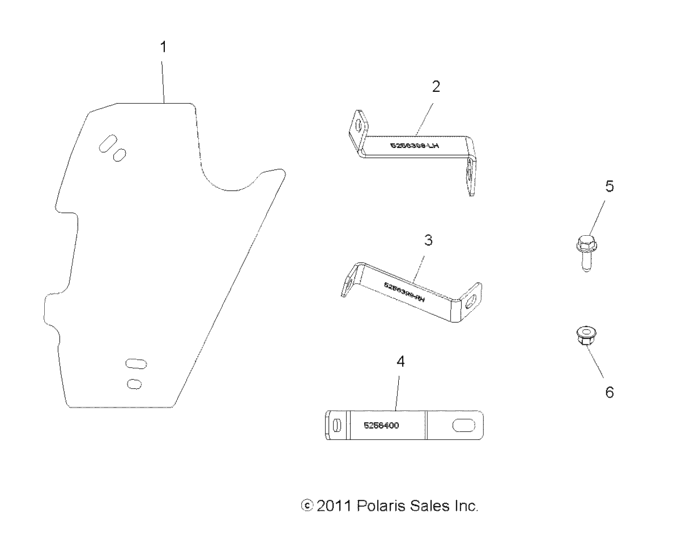

Engine, Cooling System, Radiator Shield (A14YN8EAJ/EAT (49MVCOOL12SP850)) Diagram Polaris SPORTSMAN 850 WV
- Model code
- A14YN8EAJ/EAT
- Year
- 2014
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5439821 SHIELD-RADIATOR,SIDE |
5439821 |
US $21 |
||
|
2
|
2
5256398-067 BRKT-SHIELD,RAD,LH,BLK |
5256398-067 |
US $59.66 |
||
|
3
|
3
5256399-067 BRKT-SHIELD,RAD,RH,BLK |
5256399-067 |
US $58.01 |
||
|
4
|
4
5256400-067 BRKT-SHIELD,RAD,LOWER,BLK |
5256400-067 |
US $47.34 |
||
|
5
|
5
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
|
6
|
6
7547453 Nut-hxfl-m6x1,0 8 zb3 nyl |
7547453 |
US $1.77 |
