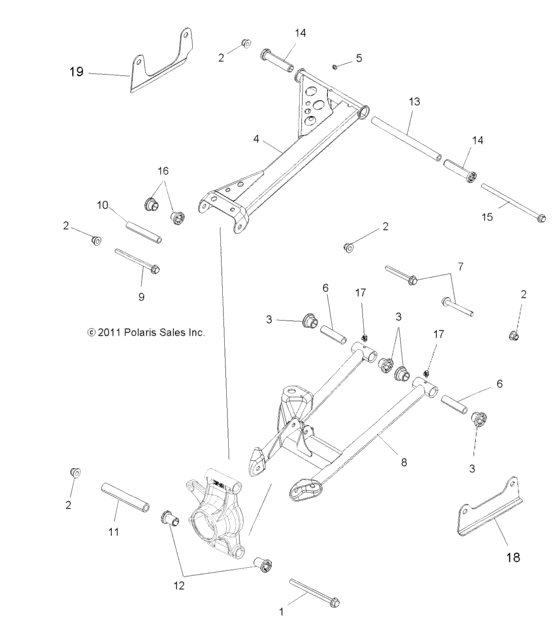

Suspension, Rear (A14YN8EAJ/EAT (49MVSUSPRR12SP850)) Diagram Polaris SPORTSMAN 850 WV
- Model code
- A14YN8EAJ/EAT
- Year
- 2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518467 Bolt-m10x1,5x140,hxhd,flg |
7518467 |
US $3.94 |
||
|
2
|
2
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
||
|
3
|
3
5439874 Bushing-standard,orv |
5439874 |
US $39.40 |
||
|
4
|
4
1018218-458 Weld-cntrlarm,lwr,rr,rh,lt,blk |
1018218-458 |
US $194.97 |
||
|
4
|
4
1019810-458 WELD-LCA,FRONT,LH,MATTE BLK |
1019810-458 |
US $152.43 |
||
|
5
|
5
7080433 Fitting,lubrication,threaded(10 |
7080433 |
US $5.25 |
||
|
6
|
6
5137346 Shaft-a-arm,63.5mm |
5137346 |
US $14.77 |
||
|
7
|
7
7519016
Scr-m10x1,5x90 hx flg zod
|
7519016 |
— | ||
|
8
|
8
1018846-458 WELD-LCA,REAR,LH,MATTE BLK |
1018846-458 |
US $194.97 |
||
|
8
|
8
1018847-458 WELD-LCA,REAR,RH,MATTE BLK |
1018847-458 |
US $298.39 |
||
|
9
|
9
7518675 Bolt-m10x1,5x130,hx hd flg |
7518675 |
US $3.75 |
||
|
10
|
10
5137590 Shaft-pivot,104.9mm,zinc yel |
5137590 |
US $9.10 |
||
|
11
|
11
5136473 Shaft-a-arm,lca,0,75" od |
5136473 |
US $35.12 |
||
|
12
|
12
5437651 Bushing-lca,0,75" id |
5437651 |
US $6.56 |
||
|
13
|
13
5137594 Shaft-pivot,210.27mm,zinc yel |
5137594 |
US $10.48 |
||
|
14
|
14
5436973 Bushing-a-arm,long,102,36mm |
5436973 |
US $10.83 |
||
|
15
|
15
7519198 Scr-hxfl m10x1.5x250 8.8 zod |
7519198 |
US $25.32 |
||
|
16
|
16
5439874 Bushing-standard,orv |
5439874 |
US $39.40 |
||
|
17
|
17
7080510 Fitting, zerk,90 degree |
7080510 |
US $7.68 |
||
|
18
|
18
5257067-067 BRACE-LCA,FRONT,BLK |
5257067-067 |
US $31.50 |
||
|
19
|
19
5257068-067 BRACE-LCA,REAR,BLK |
5257068-067 |
US $31.50 |
